Gestation Stalls

Gestation Stalls

Hog Slat gestation stall equipment provides pork producers with the ability to house pregnant sows before and during gestation while effectively managing their feed intake, body condition and well-being. Gestation stall panels are available in 8 different design configurations to assist livestock caretakers with breeding, pregnancy/heat checking and movement tasks.

Reduced Cost

Hog Slat gestation stalls feature a bolt-together design that saves on installation time and maintenance costs over the lifespan of our equipment

Quicker Installation

Hog Slat gestation stalls feature a “No-Weld” installation design that ensures proper alignment, quicker assembly and less lifetime maintenance compared to competitive brands of gestation equipment that require on-site welding during installation.Hog Slat gestation stalls feature a “No-Weld” installation design that ensures proper alignment, quicker assembly and less lifetime maintenance compared to competitive brands of gestation equipment that require on-site welding during installation.

Our “NO-WELD” stall installation design uses pre-punched top bar spacers and floor spacers; resulting in faster and straighter assembly than competitive models welded on-site

Quality Finish

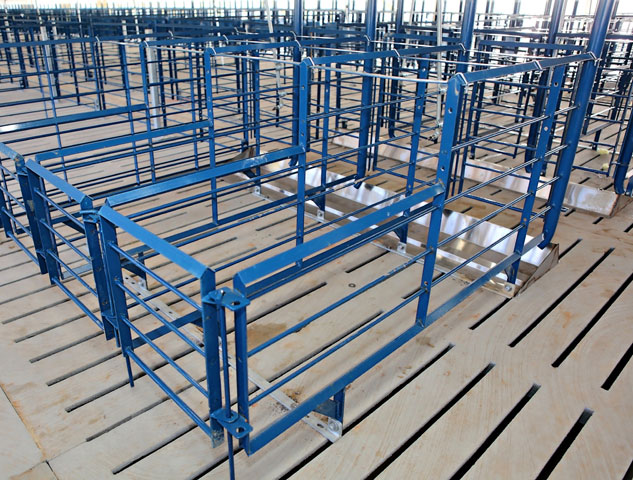

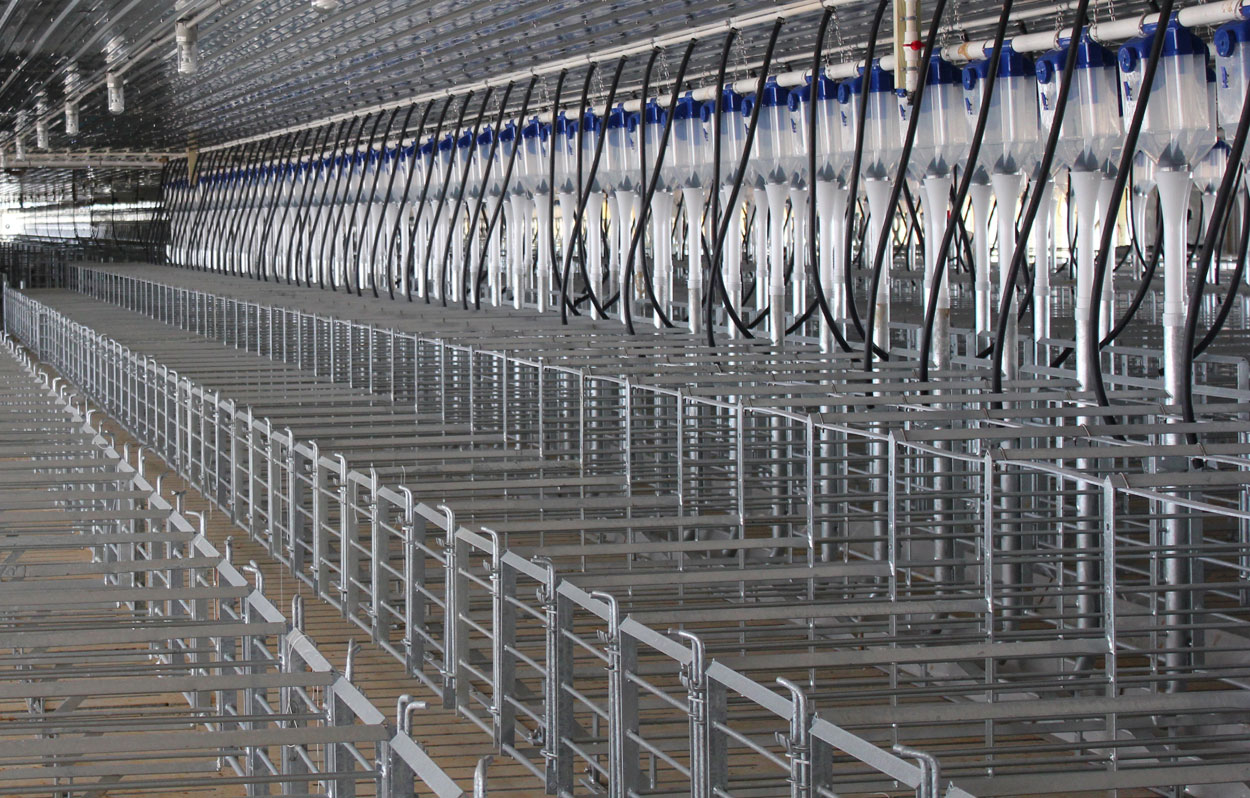

Durable solid steel construction is built to last; available with either our signature blue powder-coat epoxy paint or hot-dipped galvanized finishes

Proper Alignment

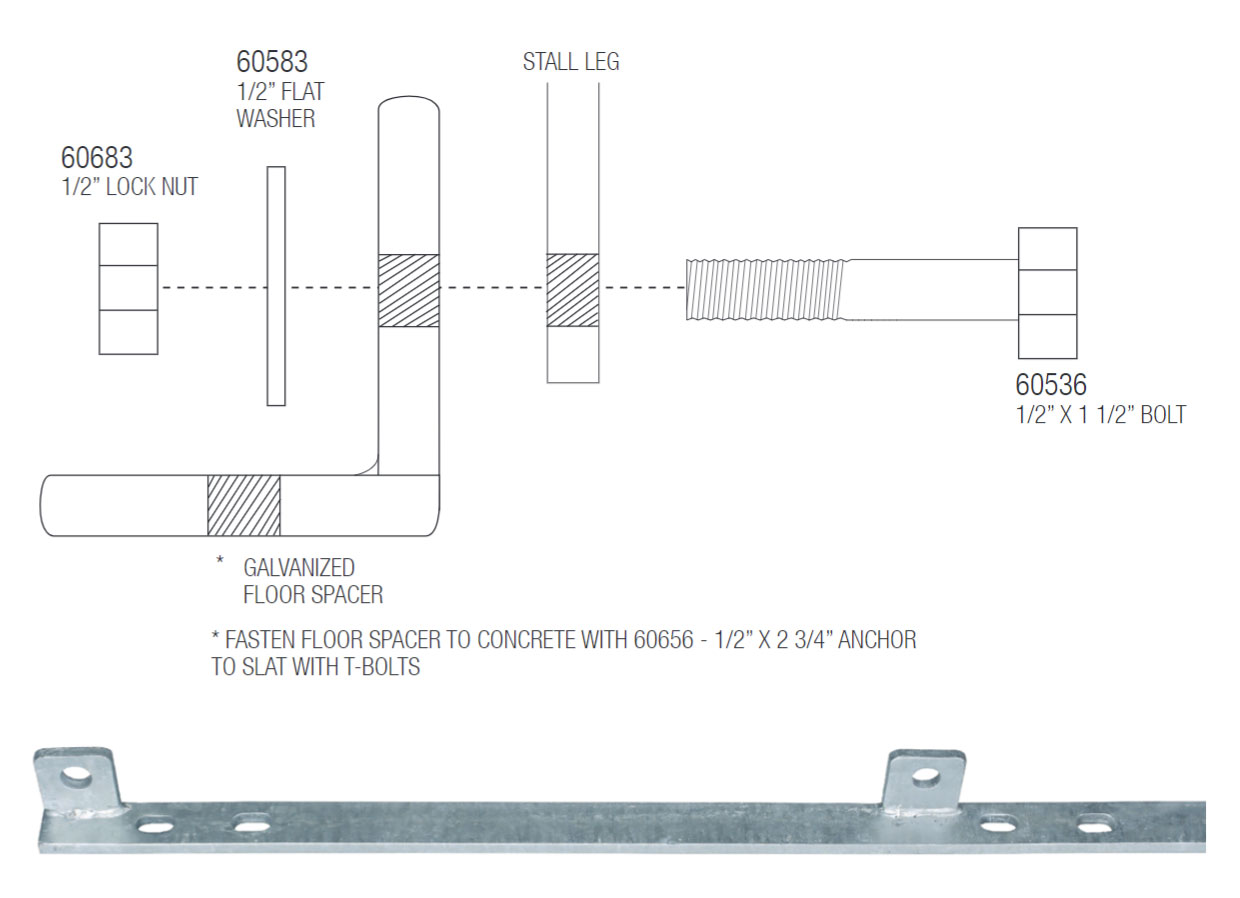

Pre-punched top bar spacers and hot-dipped galvanized floor spacers (3/8” x 1-1/2”) that resist corrosion and anchor stall legs in place; ensure proper spacing and alignment of every stall

Flexible Sizing

Hog Slat gestation stalls are available in several size options to meet the needs of your new construction or remodeled gestation barn projects.

Hog Slat gestation stalls are available in 8 different styles to meet the feeding, layout and operational needs of any swine breeding farm.Hog Slat gestation stalls are available in 8 different styles to meet the feeding, layout and operational needs of any swine breeding farm.

Stall Length Options: 7’0” or 7’6”

Stall Width Options: 22”, 23”, 24”, 25”, 26” and 28”

Multiple Configurations

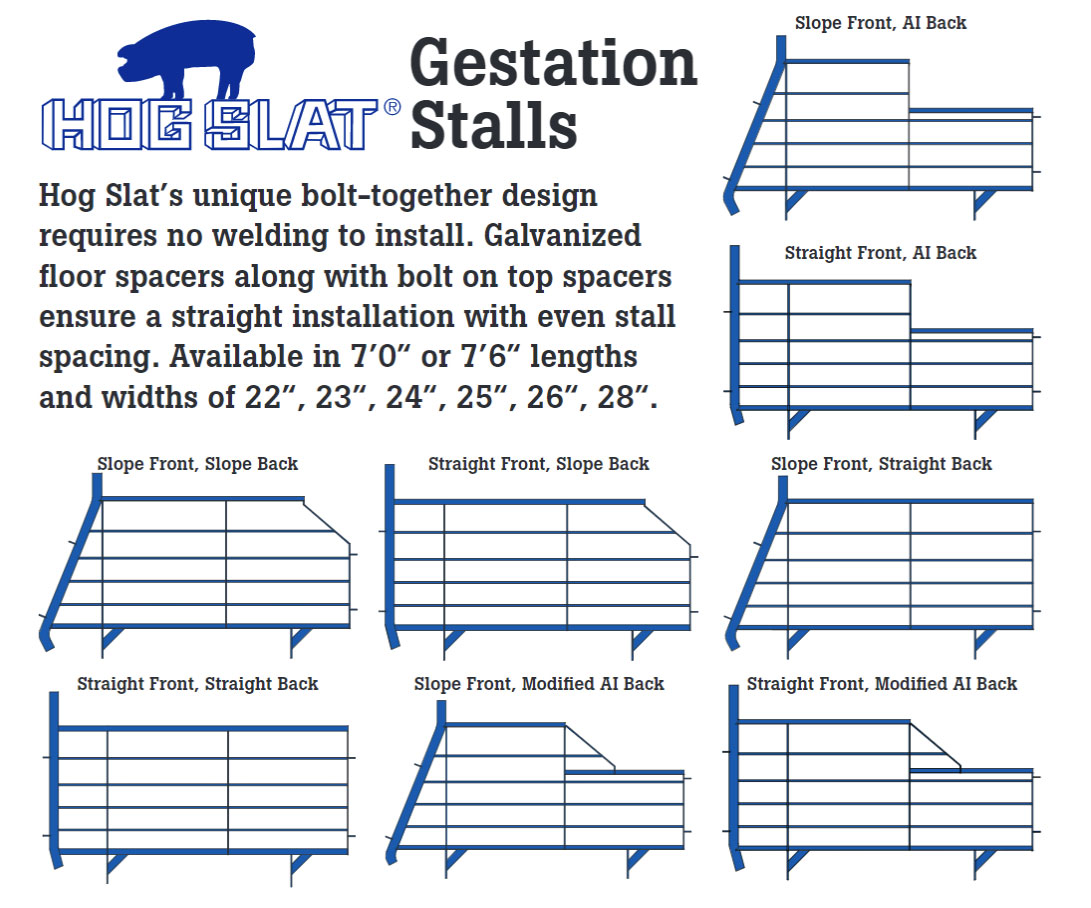

Hog Slat gestation stall panels are available with a choice between sloped front or straight front design and 4 different rear designs; resulting in 8 different total configuration options to match the needs of all swine breeding and confinement operations:

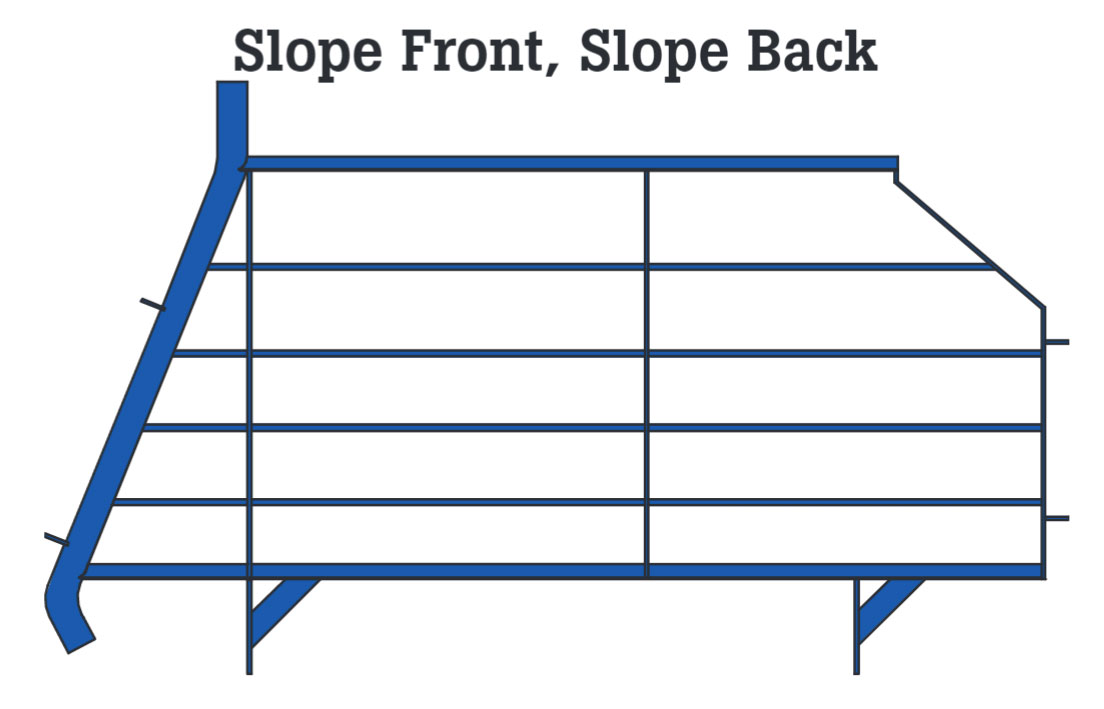

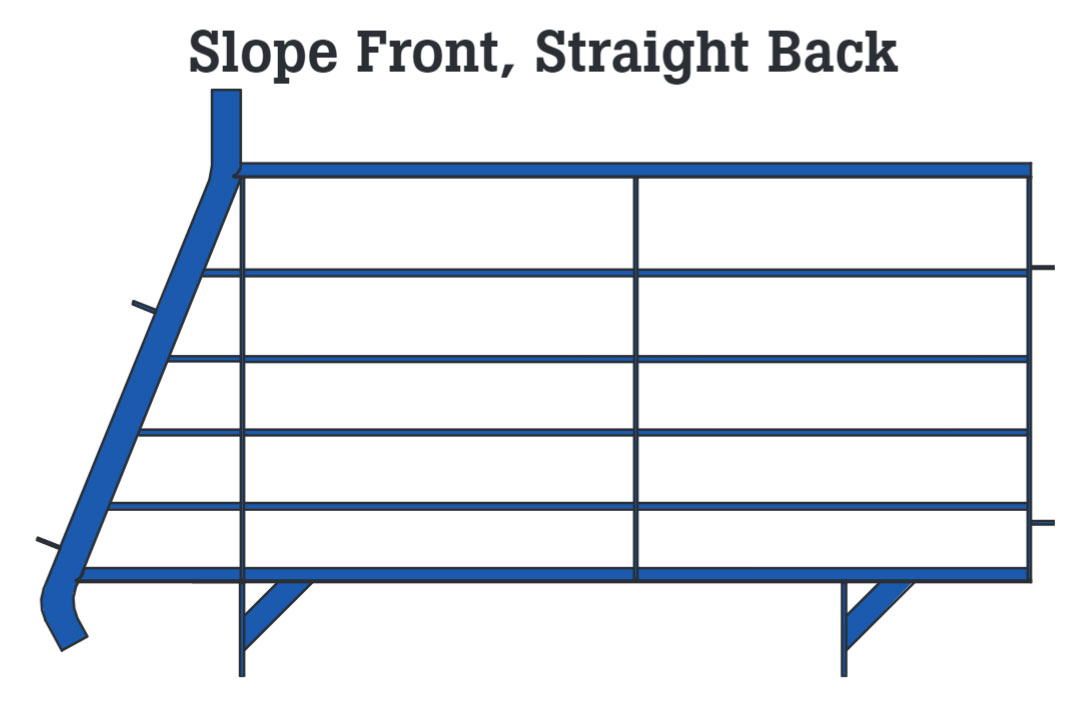

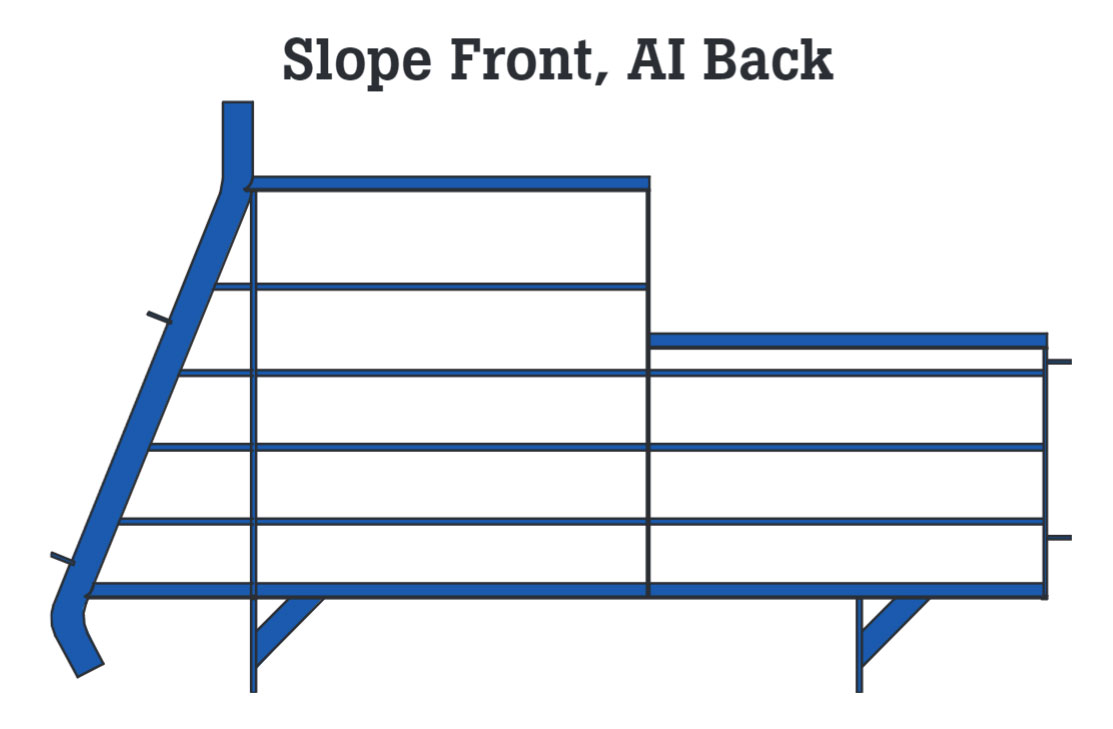

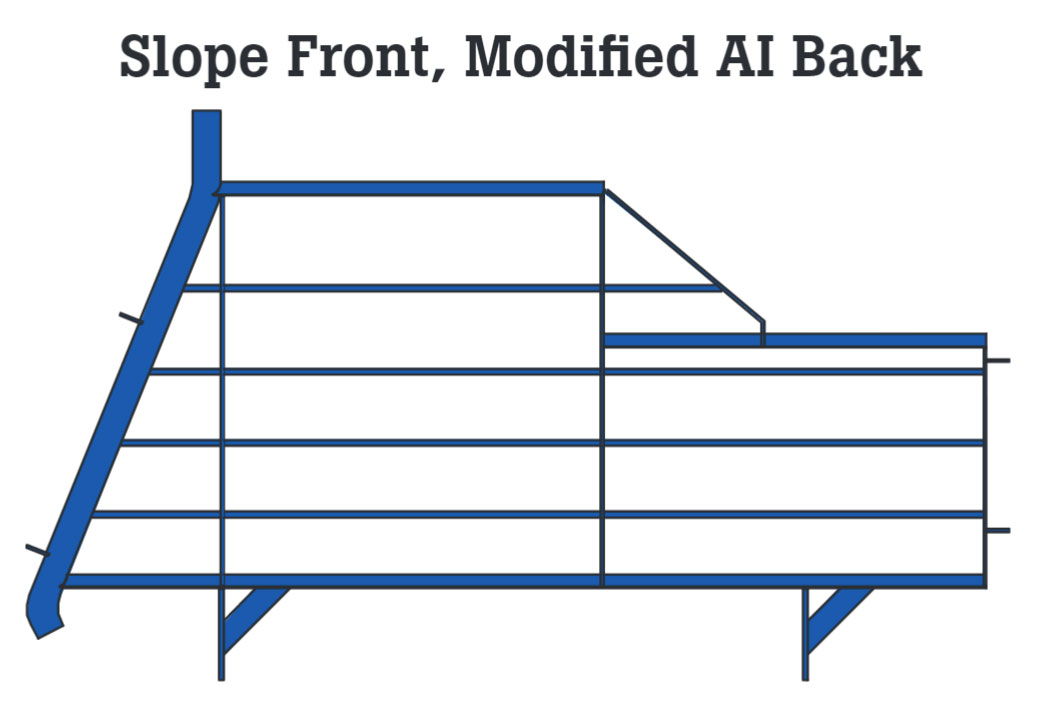

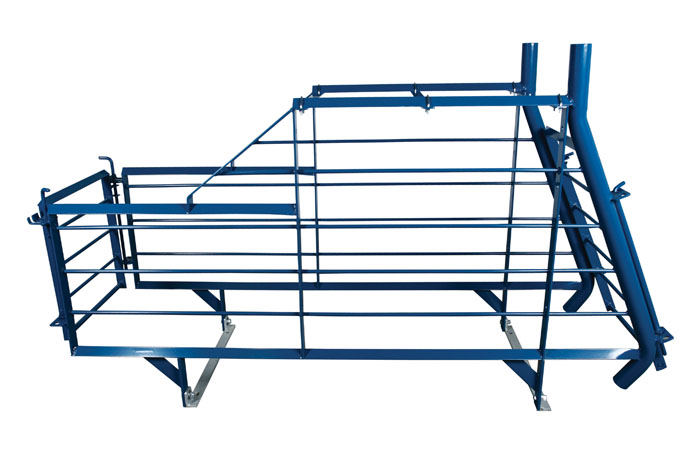

Slope Front with Slope Back, Straight Back, AI Back or Modified AI Back

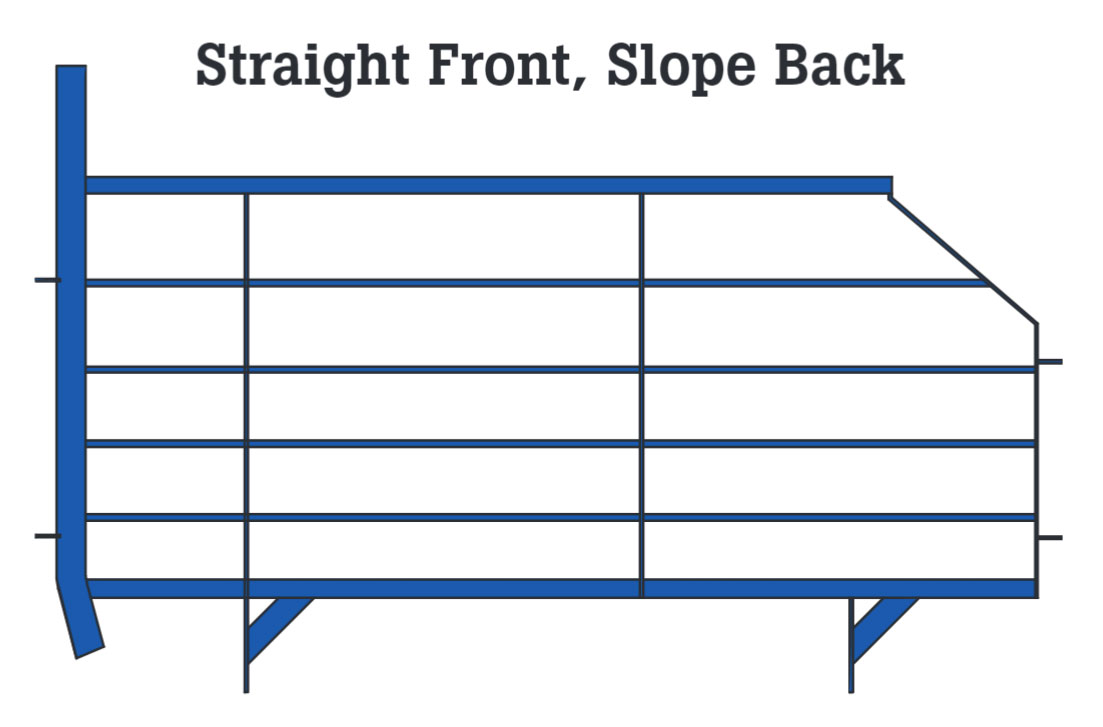

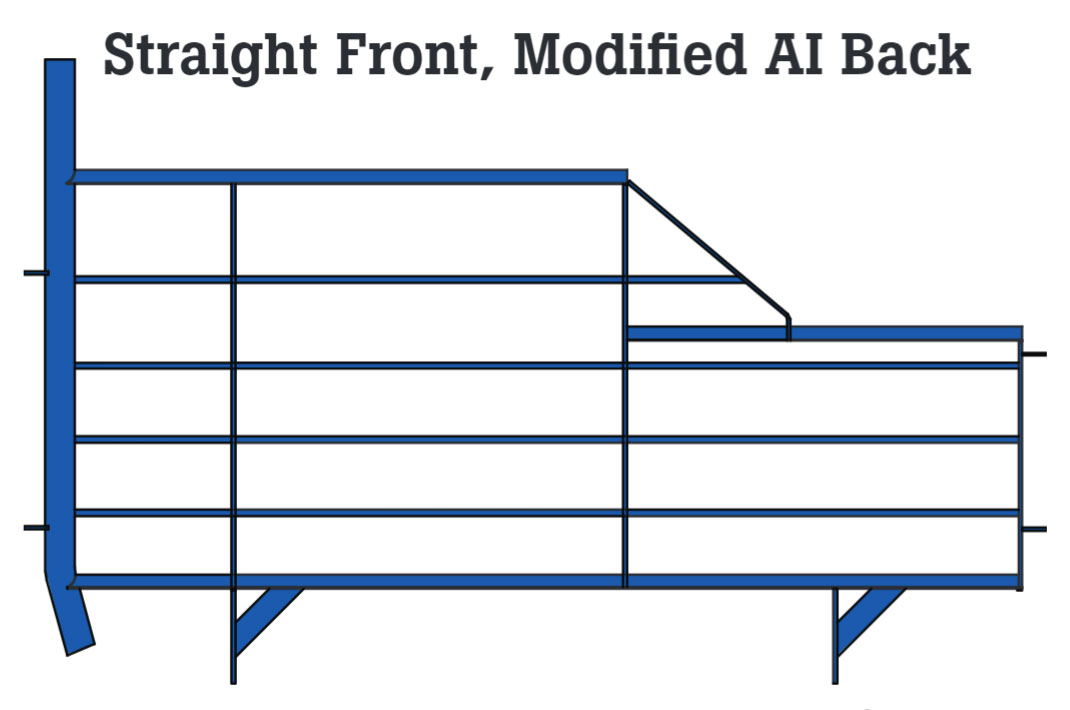

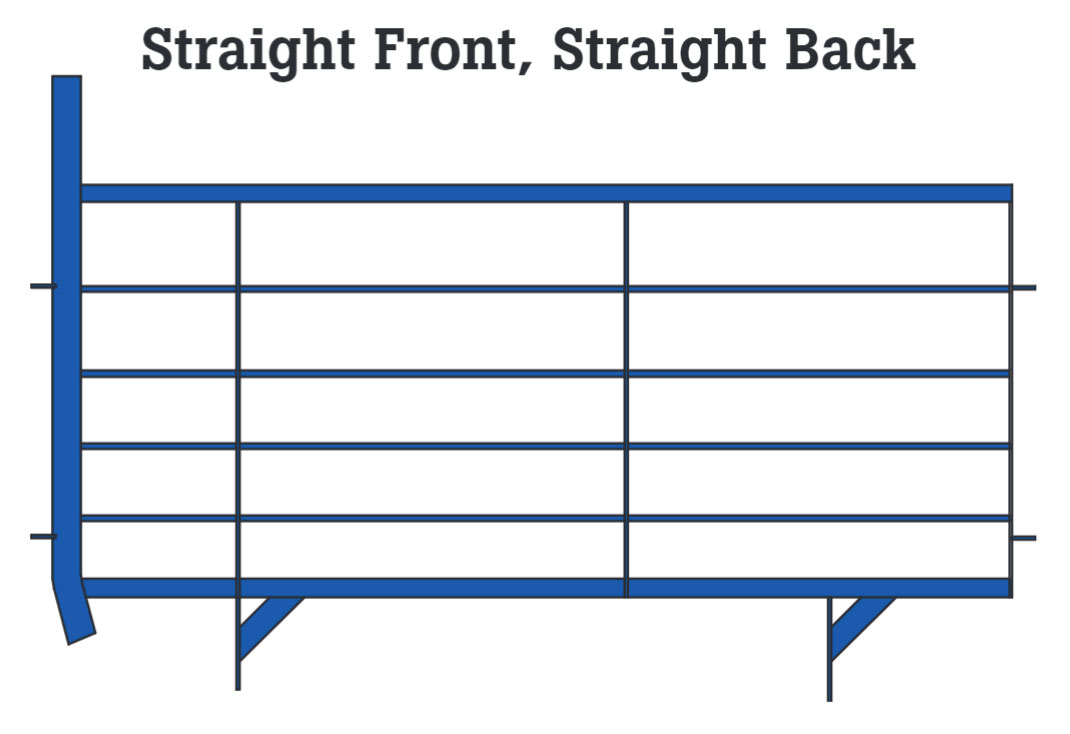

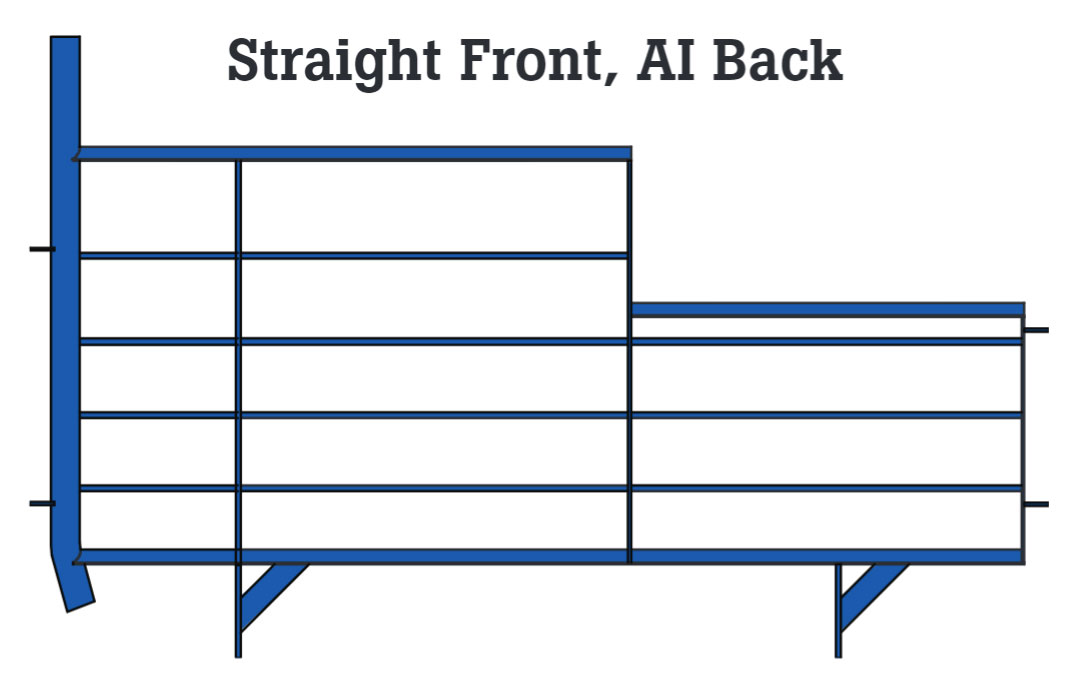

Straight Front with Slope Back, Straight Back, AI Back or Modified AI Back

Quality Design

    Hog Slat gestation stalls incorporate design features perfected over 30+ years of manufacturing and are trusted by pork producers around the world for their sow housing needs.Hog Slat gestation stalls incorporate design features perfected over 30+ years of manufacturing and are trusted by pork producers around the world for their sow housing needs.
  • 1-1/2” angle top and bottom bars, 1/2” horizontal rods and strategically spaced vertical upright supports along the panel creates a strong stall that can handle large, full grown sows
  • Integrated feed drop tube pipe delivers feed from the sow drop system directly in front of each pig and will work with both floor feeding and stainless steel trough feeding setups
  • Front and rear gate doors are available with rod tabs only ;or tab/pipe combination that provides gate rods with additional protection
  • Front and rear stall gates are secured with steel gate rods and can be opened to the left or right to facilitate easy loading and un-loading in the barn
  • Hog Slat sow bowls and SowMAX feeders can be installed on straight front stalls gates, providing producers with the ability to offer ad-lib feeding for post-farrowing sows before being bred

Installation Accessories & Replacement Parts

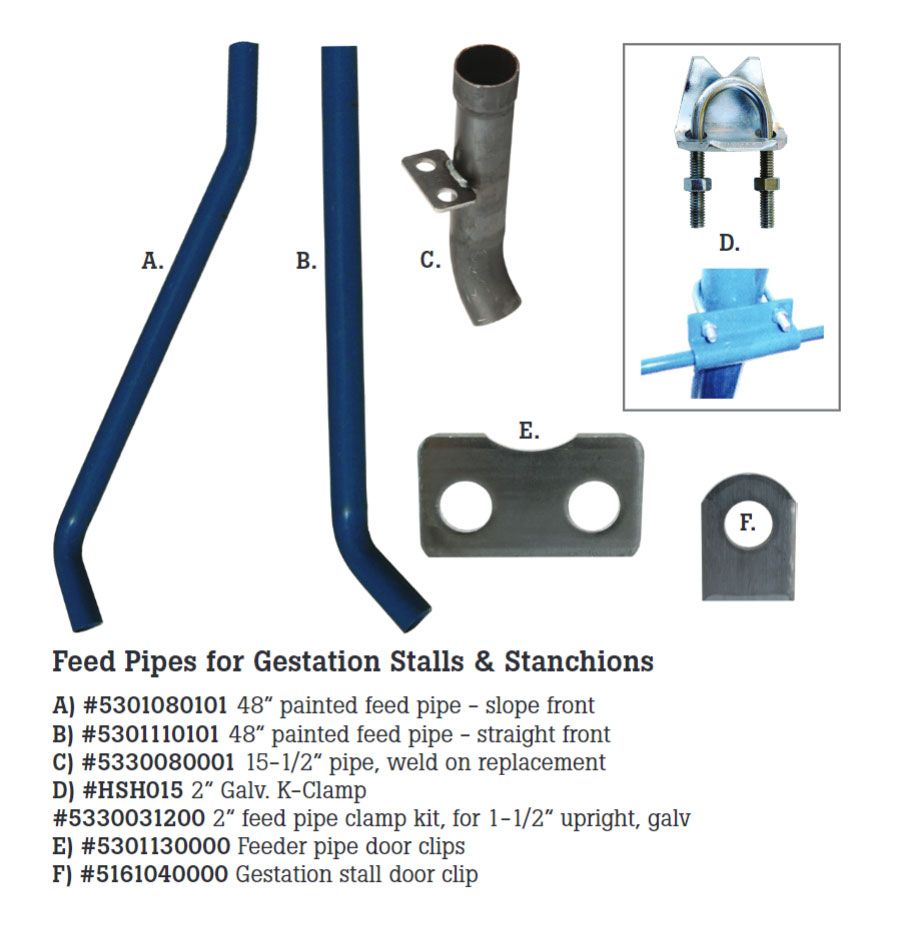

Hog Slat manufactures a complete line of gestation stall replacement parts and installation accessories including:

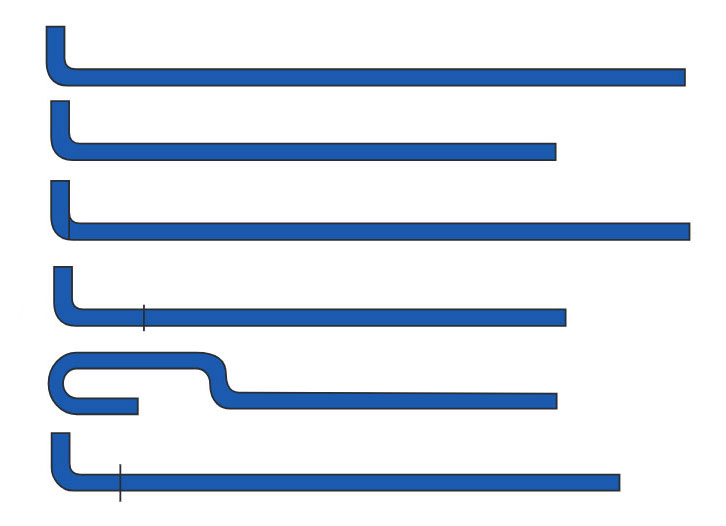

  • Gate rods (1/2” diameter steel rod)
  • Galvanized 3/8” thick floor spacing-bars
  • T-bolts (cast iron & stainless steel)
  • Top spacing connectors, V-bolts & nuts
  • Door clips
  • K-clamps
  • Feed drop pipes

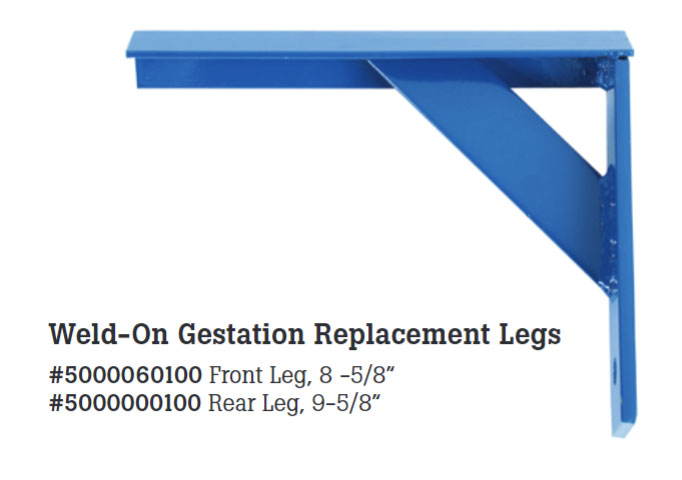

  • Weld-on replacement legs

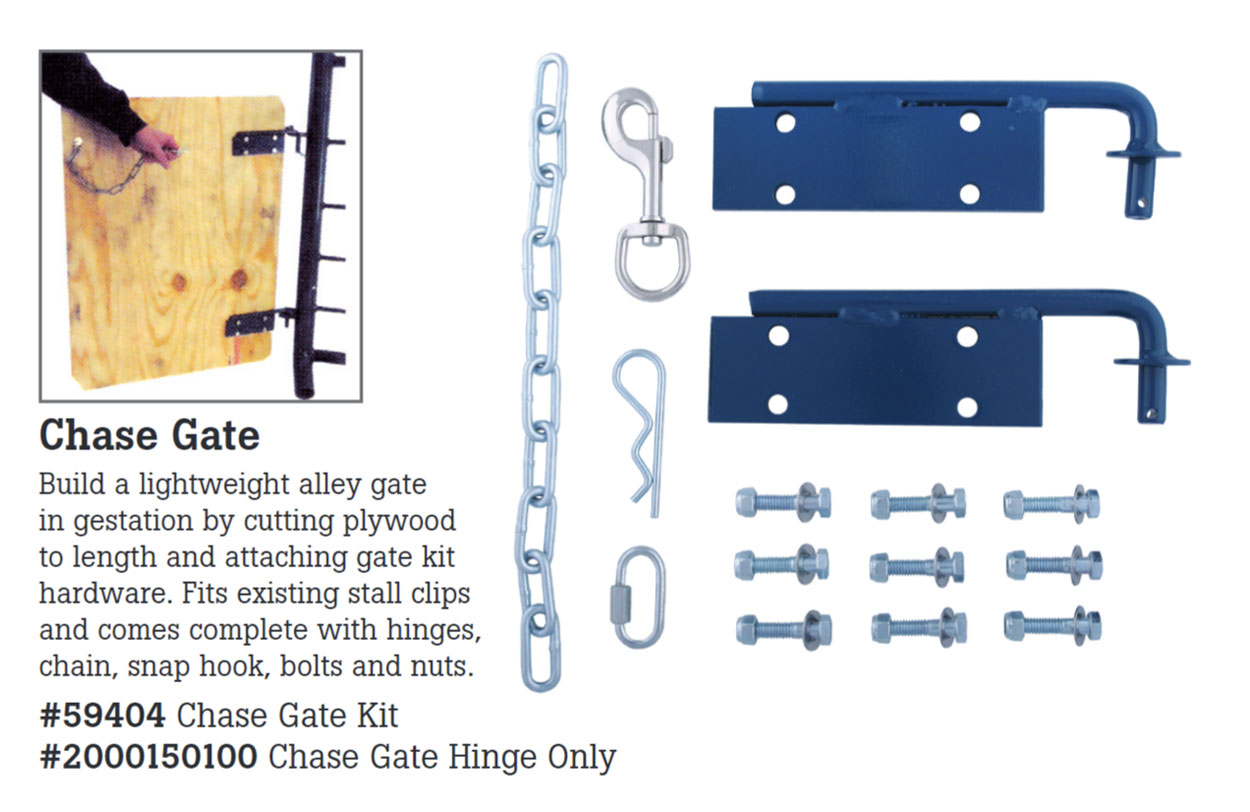

Chase Gate Kit

Hog Slat chase gate kits can be used to create lightweight alley gates to assist with sow movement chore in the gestation barn but cutting a piece of plywood to length and attaching the kit. Chase gate kits include two hinges, chain, bolts, nuts and clips. Hinge posts fit existing stall gate clips allowing the doors to be easily moved as needed in the barn. (Item #: 59404)

Image Gallery -

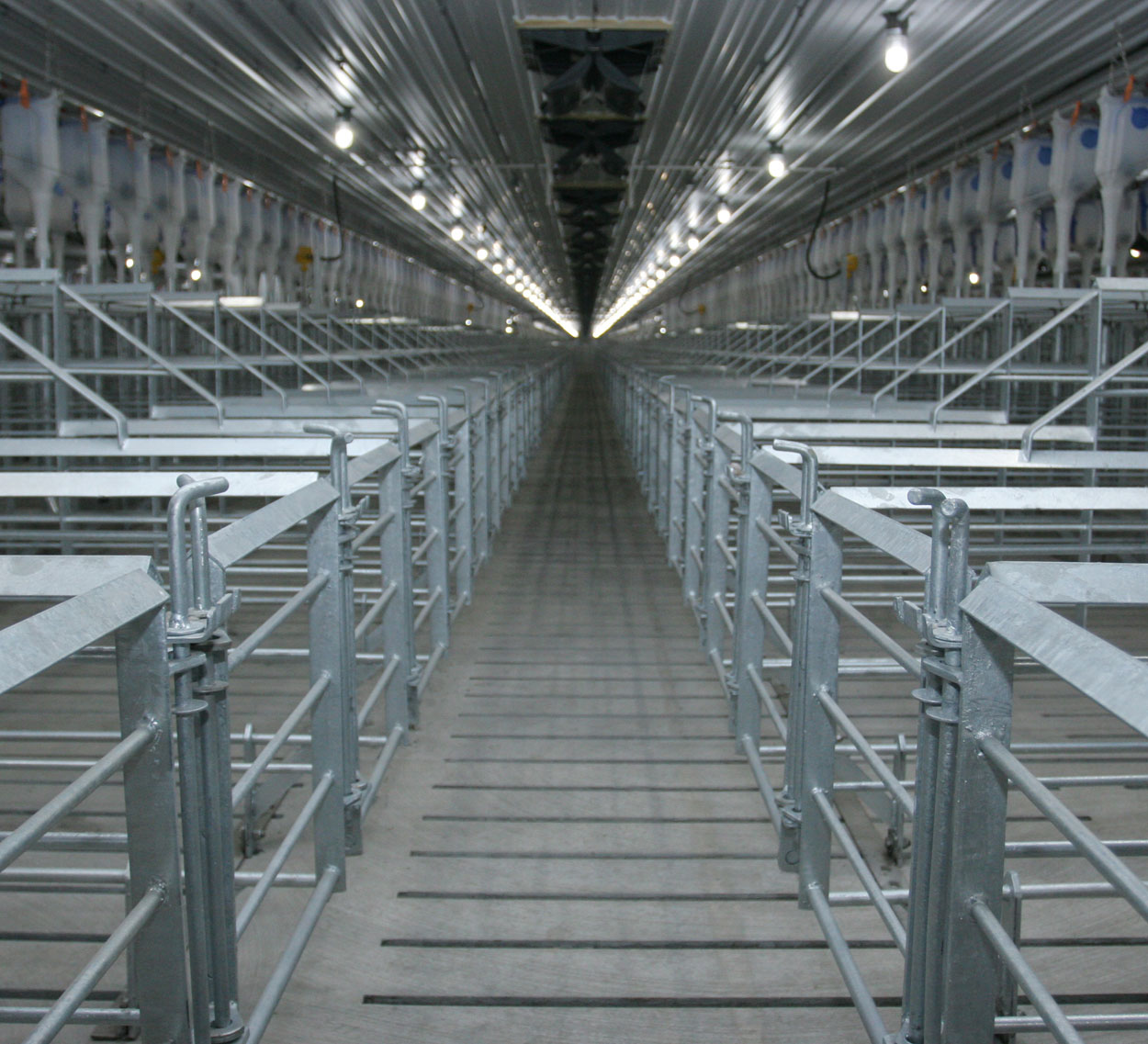

Hog Slat’s “No-Weld” bolt-together installation design allows our gestation stalls to be assembled in the barn quicker than competitive models. Our pre-punched top bars and floor spacers ensure proper alignment and spacing every time.

Click the above image for more pictures

Sloped front and sloped back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Sloped front and straight back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Sloped front and AI back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Sloped front and Modified-AI gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Straight front and sloped back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Straight front and sloped back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Straight front and AI back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Straight front and Modified-AI back gestation stall design. Available in blue powder coated epoxy painted or hot-dipped galvanized finishes.Hog Slat’s gestation stall design has been improved, installed and trusted by pork producers across the nation for over 30 years.Hog Slat galvanized floor space bars are pre-punched and designed to line up with our pre-punched top-spacer bars; allowing for quicker installations and ensuring proper alignment and spacing of every gestation stall.Hog Slat gestation stall gate rods are manufactured using 1/2” diameter solid steel rods and are available in all commonly used styles.Hog Slat manufactures a range of installation and repair accessories for customizing gestation stall feeding/watering or repairing aged equipment.Replacement legs are available to repair or extend the life of aged or damaged stall panels.The Hog Slat Chase Gate Kit provides an easy, convenient way to build alley doors that assist with moving sows through the barn.
