Poultry Feed Delivery System

GrowerSELECT Poultry Feed Delivery System

GrowerSELECT® poultry feed systems are built for the needs of today’s modern chicken and turkey farms. We’ve put the knowledge gained from over 45 years of building, installing and servicing livestock feeding equipment into every product we make. Whether you are installing our feed system in a brand new building, or upgrading equipment in existing houses; you can count on the GrowerSELECT poultry feed delivery system to efficiently and profitably feed your flocks while maximizing conversion potential.

  • Heavy-duty Hog Slat® Bulk Feed Bins securely store feed outside barns and are built to last with an industry leading G100 galvanized finish and 5 year warranty
  • Our GrowerSELECT Grow-Flex™ Fill System combines Grow-Flex flexible auger and specially formulated PVC feed pipe to smoothly convey feed into each barn and keep hoppers filled
  • Classic Flood™ Chicken Pan Feeders incorporate innovative features that provide easy access to feed from the time chicks are placed until grown birds go to market
  • Turkey grow-out operations rely on the durable construction and innovative features of our GrowerSELECT Adult Turkey Feeder in order to efficiently feed growing birds to large sizes

Many GrowerSELECT components can be used as direct replacement parts for other brands of poultry feed systems. GrowerSELECT feed system parts help keep your operation profitable by delivering high-quality parts direct to you without added dealer mark-ups.

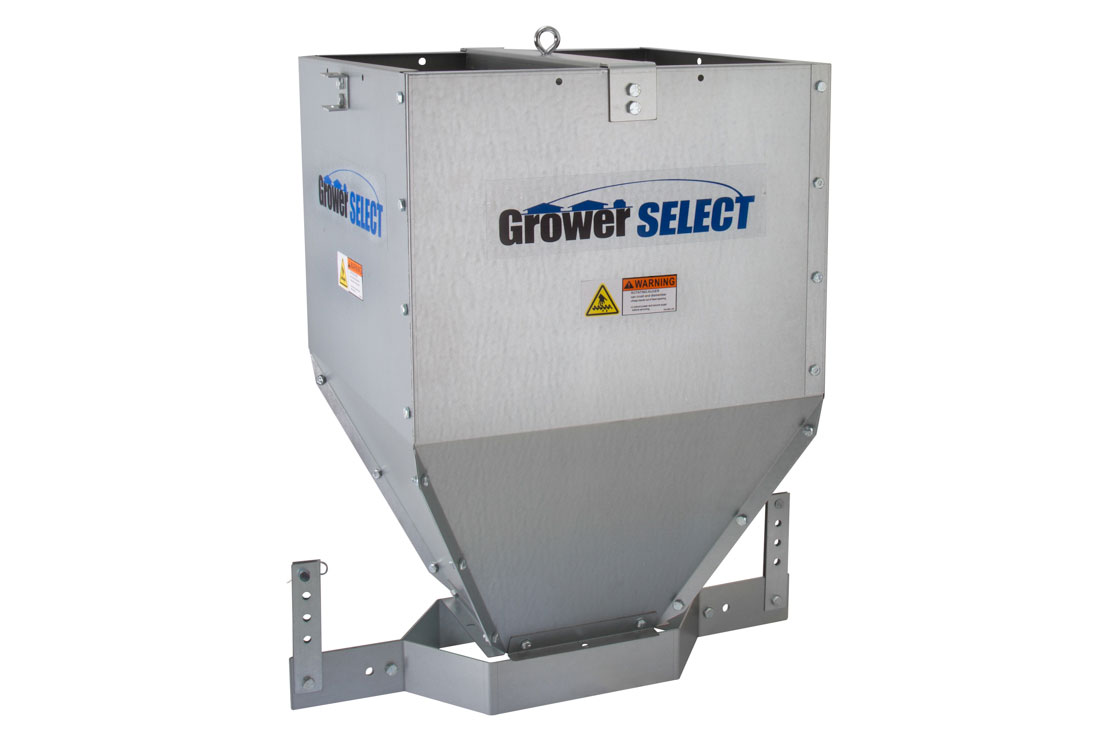

GrowerSELECT Poultry Feed Line Hopper

    GrowerSELECT® Poultry Feed Line Hoppers are manufactured of durable galvanized steel and available in 120, 200 and 300 pound capacities.GrowerSELECT® Poultry Feed Line Hoppers are manufactured of durable galvanized steel and available in 120, 200 and 300 pound capacities.
  • Constructed of 20 gauge galvanized steel for increased strength and resistance to damage
  • Dual or single point suspension provides options for hopper level monitoring
  • Hopper can be easily removed at the end of the flock before feed lines are cranked up for cleanout
  • Cross brace at the top of the hopper provides extra rigidity and a solid point to attach drop tubes from fill systems
  • Available in 120lbs (HS569A-120), 200lbs (HS569A-200) and 300lbs (HS569A-300) capacities that fit GrowerSELECT chicken and turkey feed line unloader boots

GrowerSELECT Hopper Level Control Switch

  • Easily installs on the side of the feed line hopper without the use of tools
  • Adjust hopper feed level heights by sliding the switch up and down on the mounting bracket
  • Can be installed in multiple feed line hoppers by wiring parallel so that any unit can trigger the fill system
  • Includes 36” pigtail cord, watertight control box and 20 amp switch
  • CSA Certified
  • Item # HS597

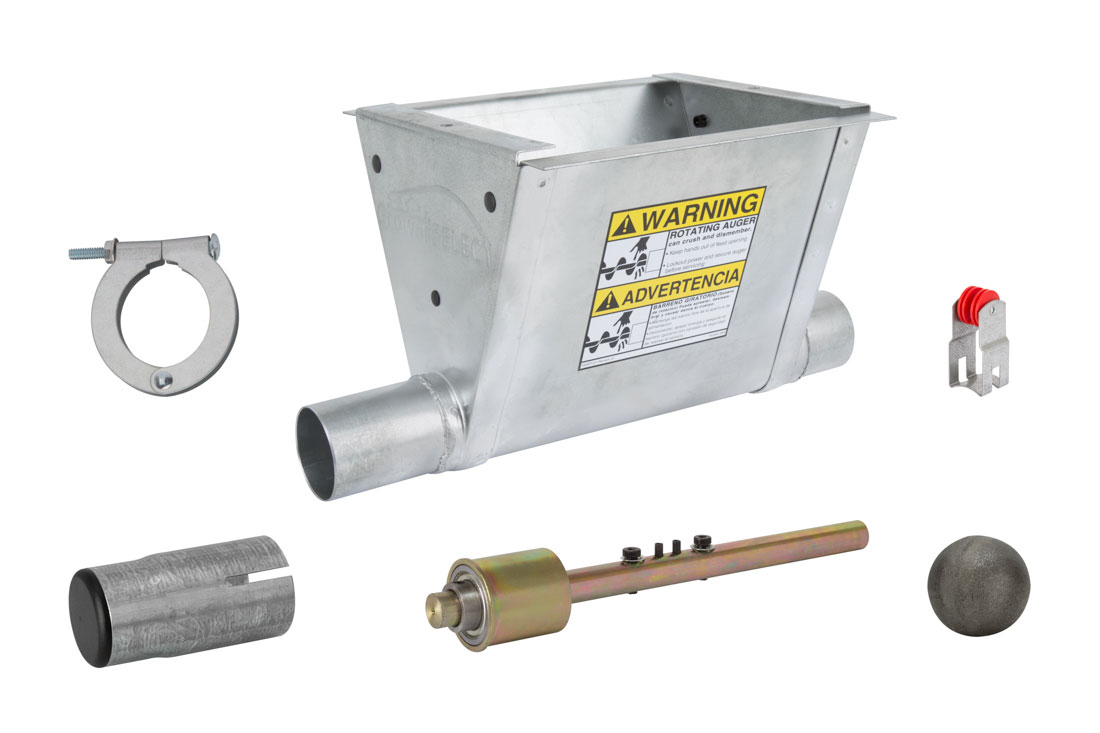

GrowerSELECT Hopper Unloader Kits

  • Kits come complete with the unloader, cannonball, anchor bearing and installation hardware
  • Galvanized metal unloader weldments attach to the feed line and provide a smooth transition from the hopper

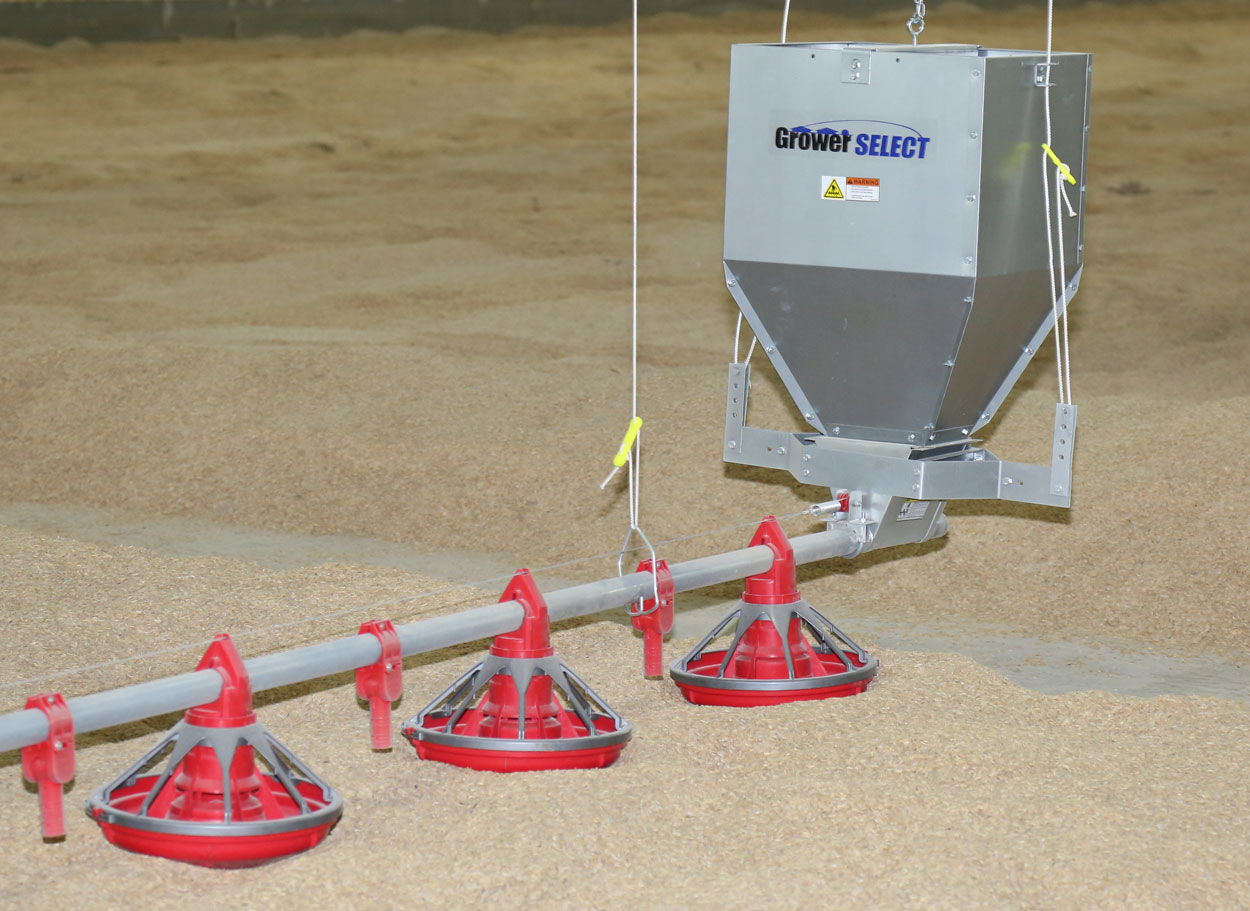

  • GrowerSELECT® unloader kits transition feed from the poultry hopper into the feed line pipe where Grow-Flex™ 44mm poultry auger conveys it through the house filling feeders. (Shown: Classic Flood™ chicken pan feeders and Kwik-Start chick drops.)GrowerSELECT® unloader kits transition feed from the poultry hopper into the feed line pipe where Grow-Flex™ 44mm poultry auger conveys it through the house filling feeders. (Shown: Classic Flood™ chicken pan feeders and Kwik-Start chick drops.)
  • Available in single and double output configurations (dual output kits include cannonballs, anchor bearings and installation hardware for both feed lines) for chicken and turkey feed line tube applications
  • Chicken
    • Single Unloader Kit: Item # HS532KIT

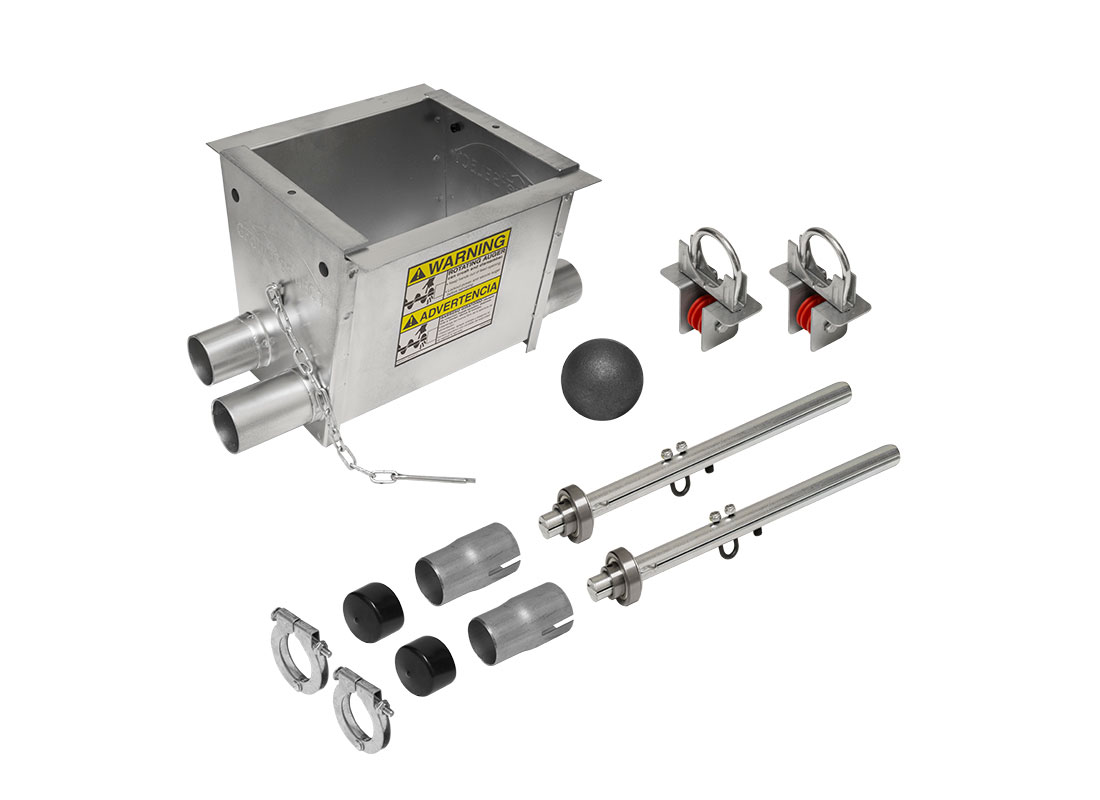

    • Twin Unloader Kit: Item # HS533KIT
  • Turkey
    • Single Unloader Kit: Item # HST1610KIT

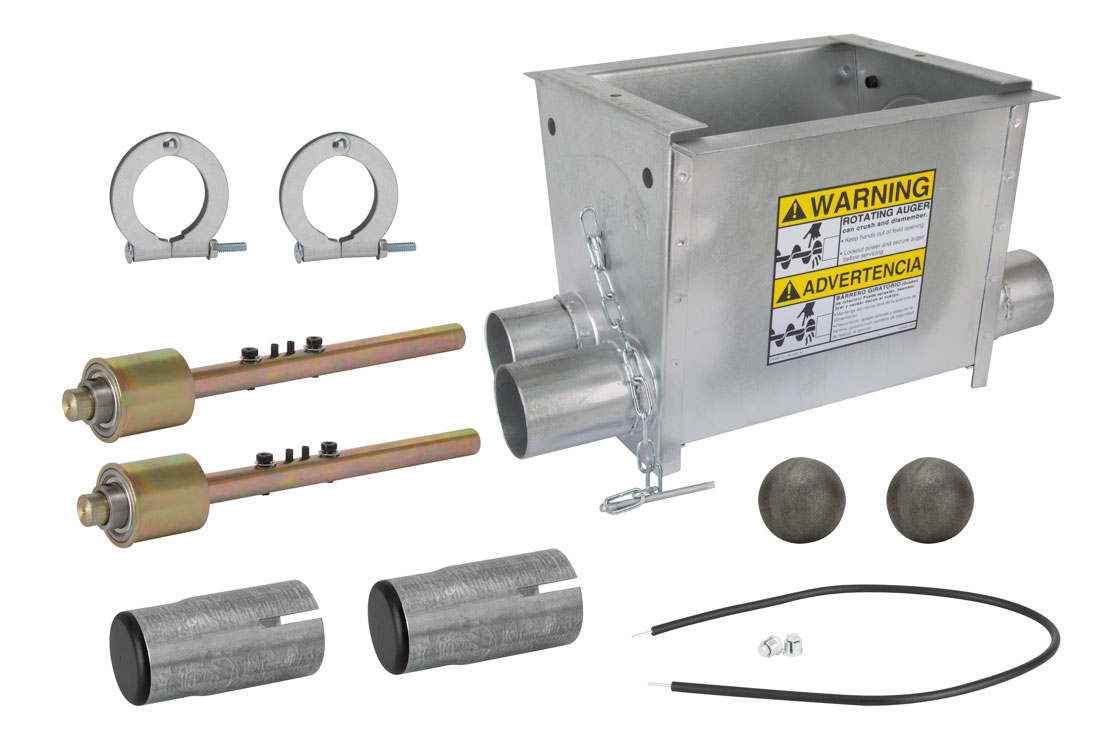

    • Twin Unloader Kit: Item # HST1600KIT

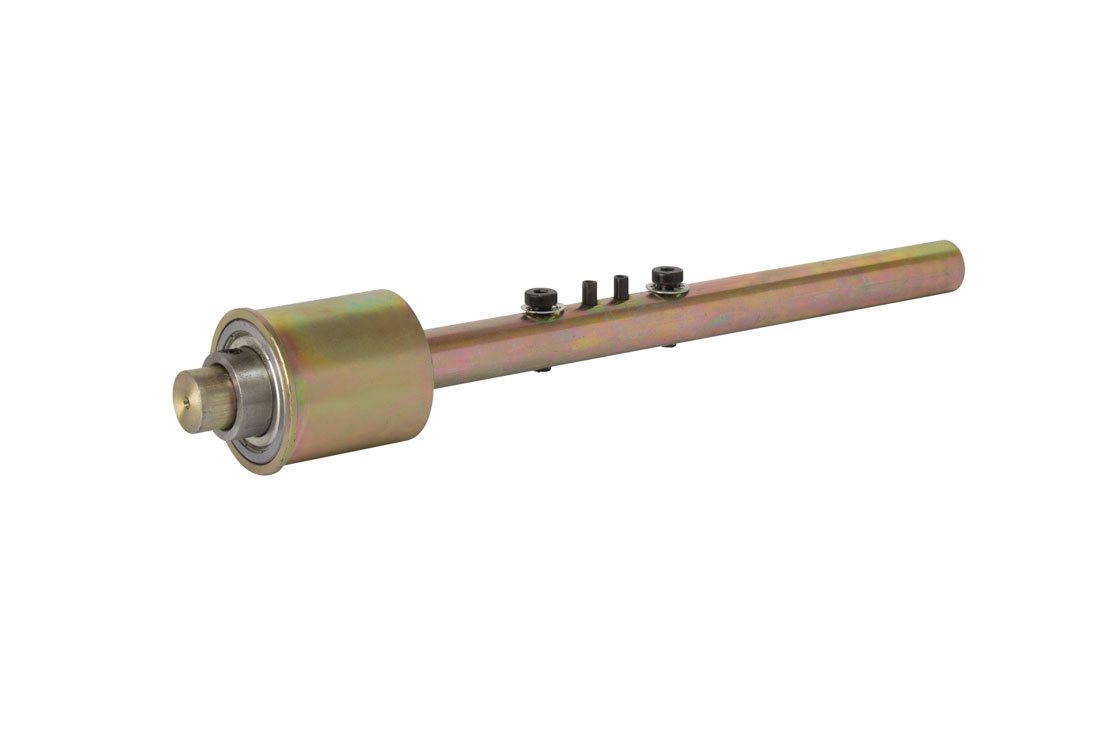

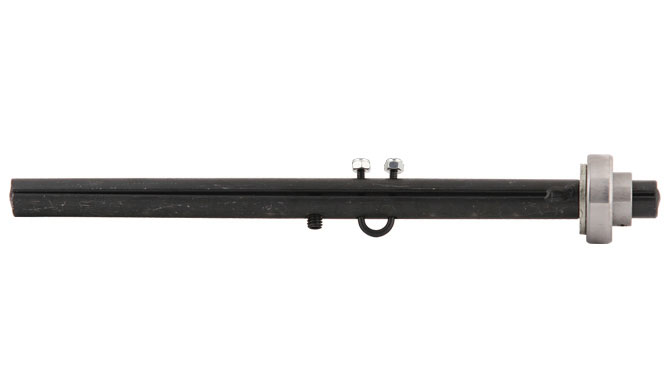

GrowerSELECT Feed Line Anchor Bearings

GrowerSELECT feed tube anchor bearings provide a solid anchor point in the poultry hopper unloader weldments to attach Grow-Flex 44mm feed line auger to.

  • Included with GrowerSELECT unloader kits for chicken and turkey feed lines
  • GrowerSELECT poultry feed line anchor bearing and other unloader parts are also available to replace worn components in your existing feed lines from other manufacturers
  • Chicken: Item # HSAB45UP
  • Turkey: Item # HSTAB45

GrowerSELECT Poultry Feed Line Tubes

  • Constructed of roll-formed 18-gauge G90 galvanized steel for enhanced corrosion resistance and increased durability
  • 2” long swedged bell mouth on one end to ensure secure connections between pipes

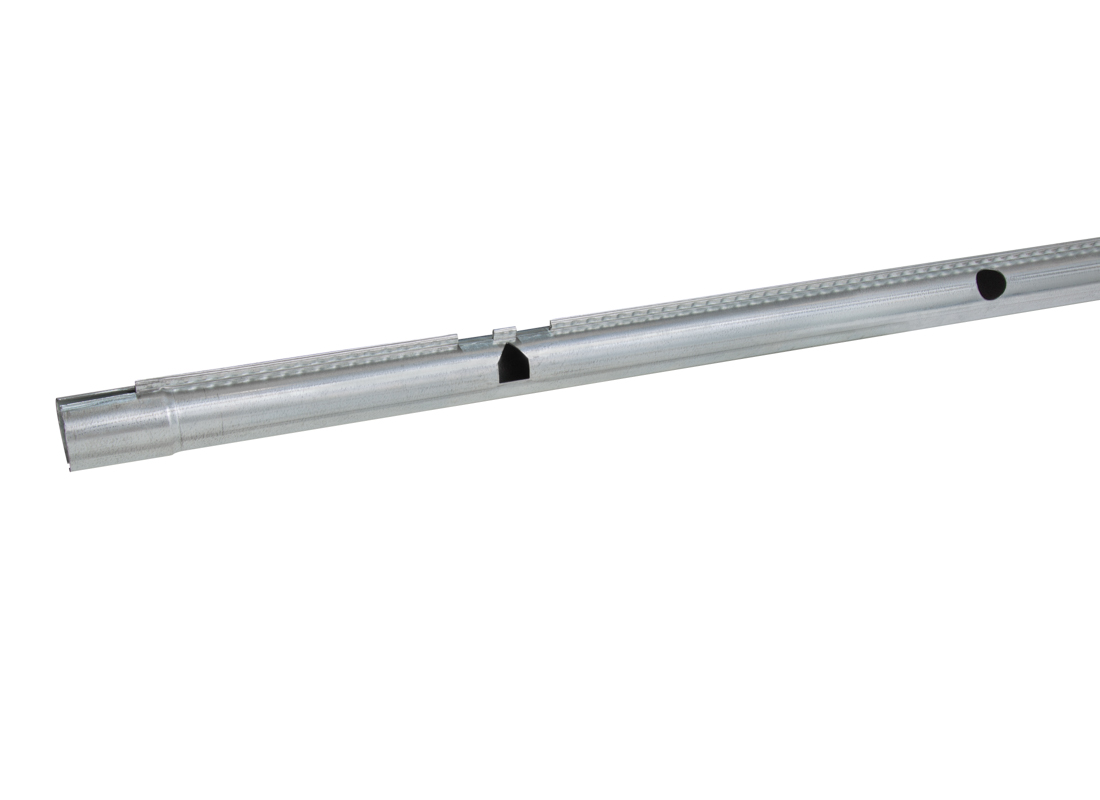

Chicken Feed Line Pipe

  • 1.75" diameter tube
  • Features additional crimps per inch than comparable feed tube for added strength
  • Available in the following configurations:
    • 9' Pipe: 3, 4 or 8 holes
    • 10' Pipe: 3, 4 or 8 holes

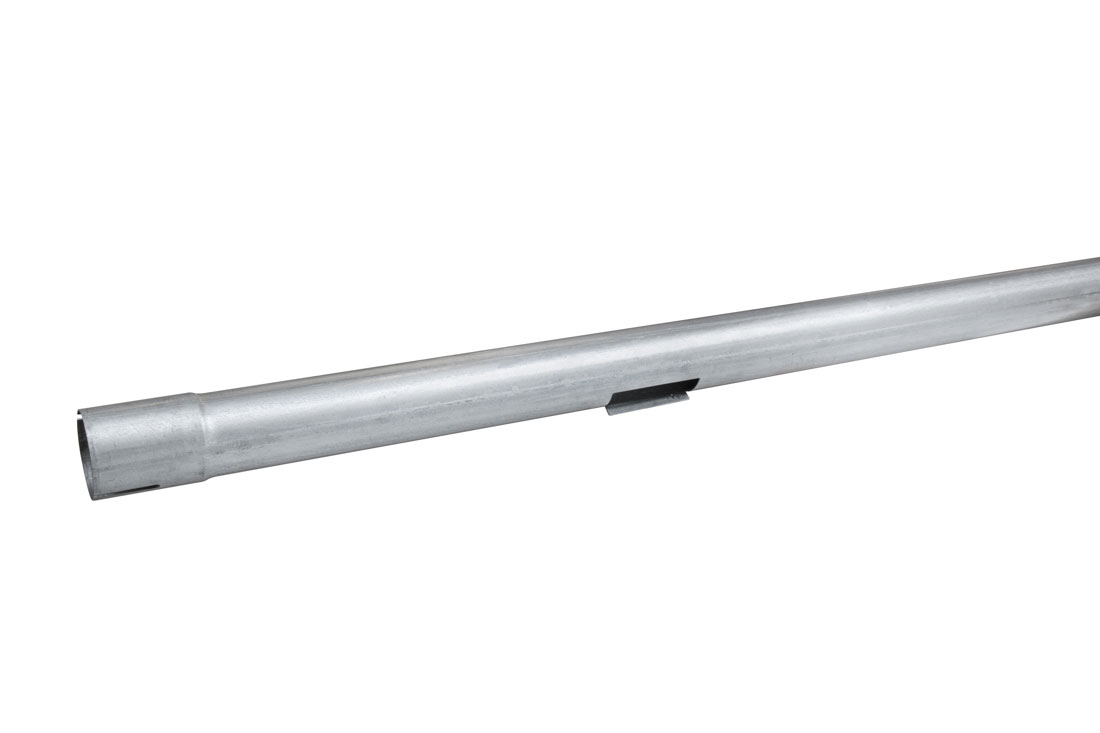

Turkey Feed Line Pipe

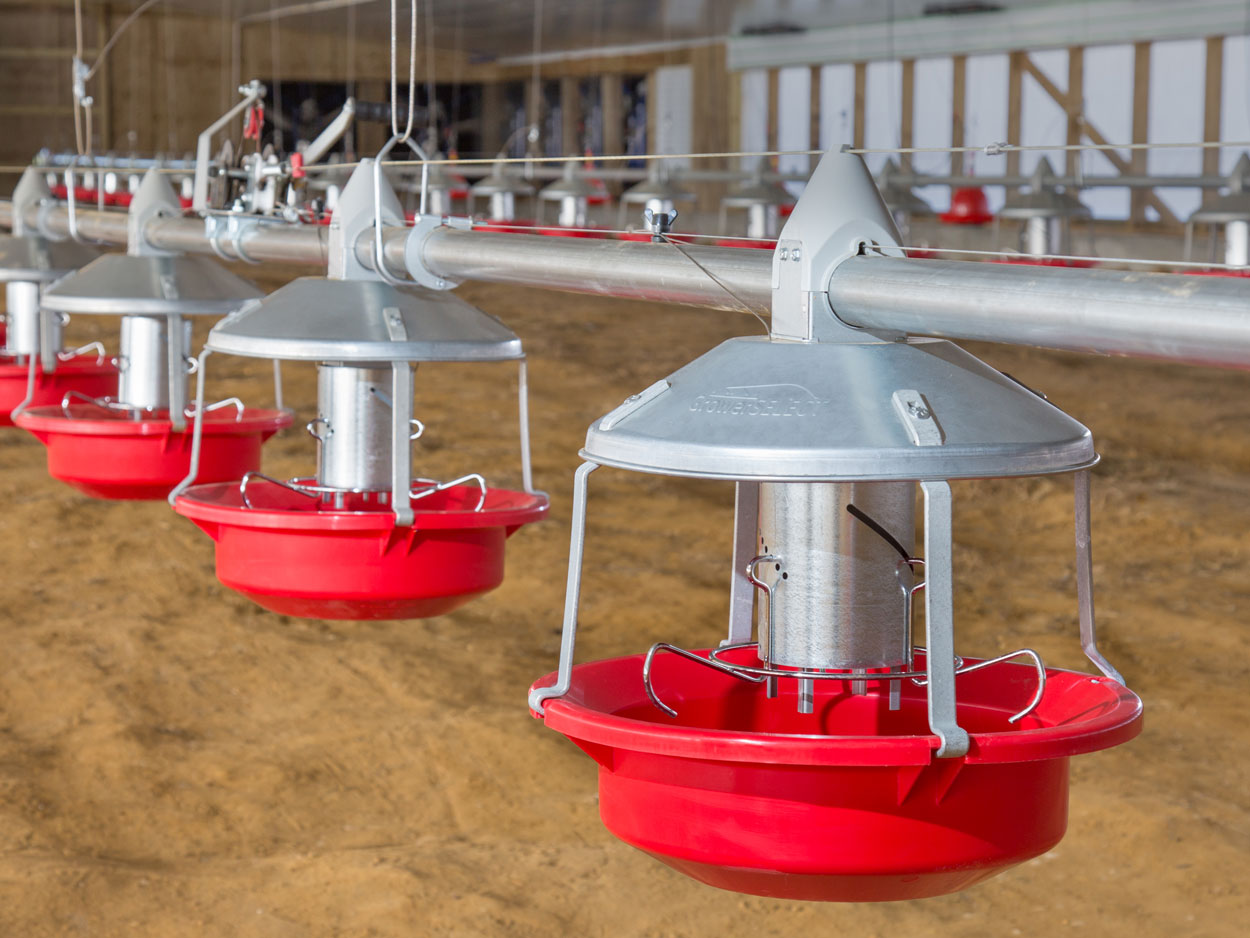

GrowerSELECT® Adult Turkey Feeders installed on GrowerSELECT turkey feed line tubing.GrowerSELECT® Adult Turkey Feeders installed on GrowerSELECT turkey feed line tubing.
  • 2" diameter tube
  • Welded seam construction with smooth exterior
  • Available in the following configurations:
    • 1 on 10' Pipe: (80" drop spacing)
    • 2 on 10' Pipe: (60" drop spacing)
    • 3 on 10' Pipe: (40" drop spacing)

Pair with our complete line of accessories to complete feed line installation:

  • Feed line hangers
  • Feed line clamp
  • Cable and rope adjusters
  • Shocker line wire, insulators, springs, clamps and crimps

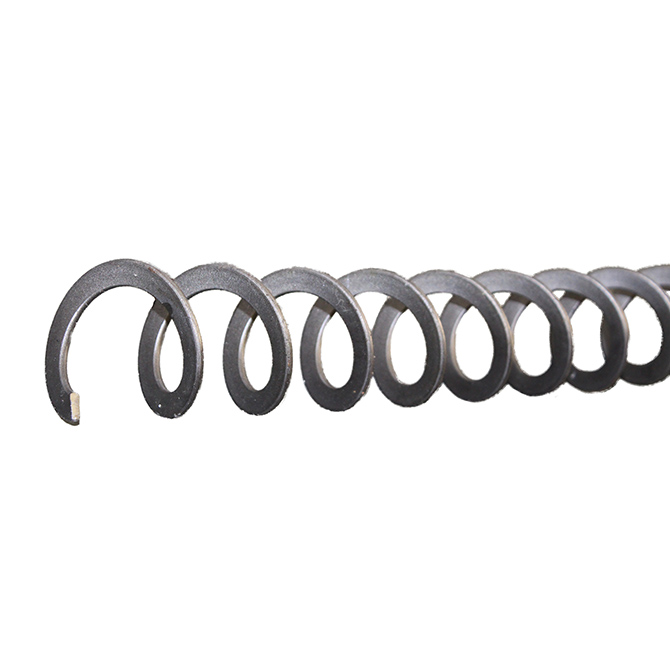

GrowerSELECT Grow-Flex™ 44mm Poultry Auger

  • Grow-Flex auger is manufactured using an innovative process that provides superior flexing and breakage strength to keep you system performing longer
  • Coated with an oxidation resistant oil finish after manufacturing to prevent storage rust
  • Delivers feed at 13 pounds per minute
  • Fits standard 1.75” chicken and 2" turkey feed pipe tube
  • Maximum run length of 600 feet
  • 10 Year Limited Warranty from the date of installation

Grow-Flex poultry feed line auger is a high-quality, reliable choice for new feed line installations and replacement of worn auger in your poultry feed systems from other manufacturers.

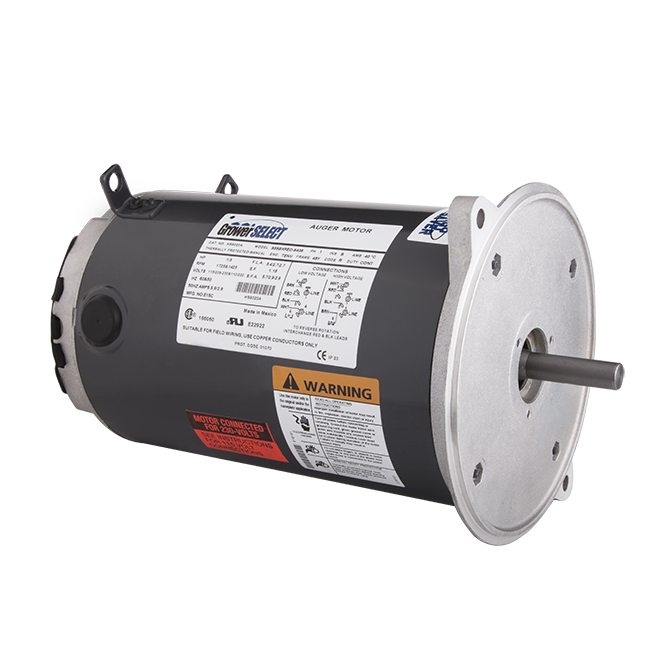

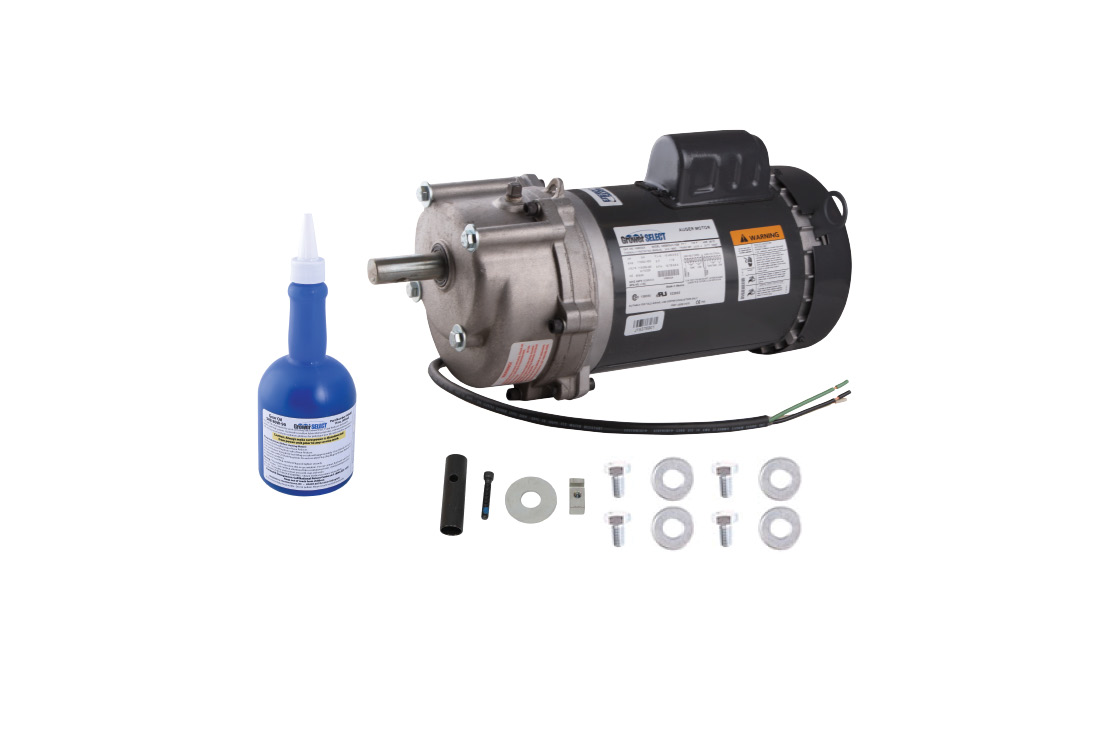

GrowerSELECT Drive Units for Poultry Feed Lines

GrowerSELECT poultry feed line drive units are constructed with GrowerSELECT motors, pinions and gear heads to reliably power flexible auger feed lines in broiler, broiler breeder, pullet, turkey and other poultry feeding systems.

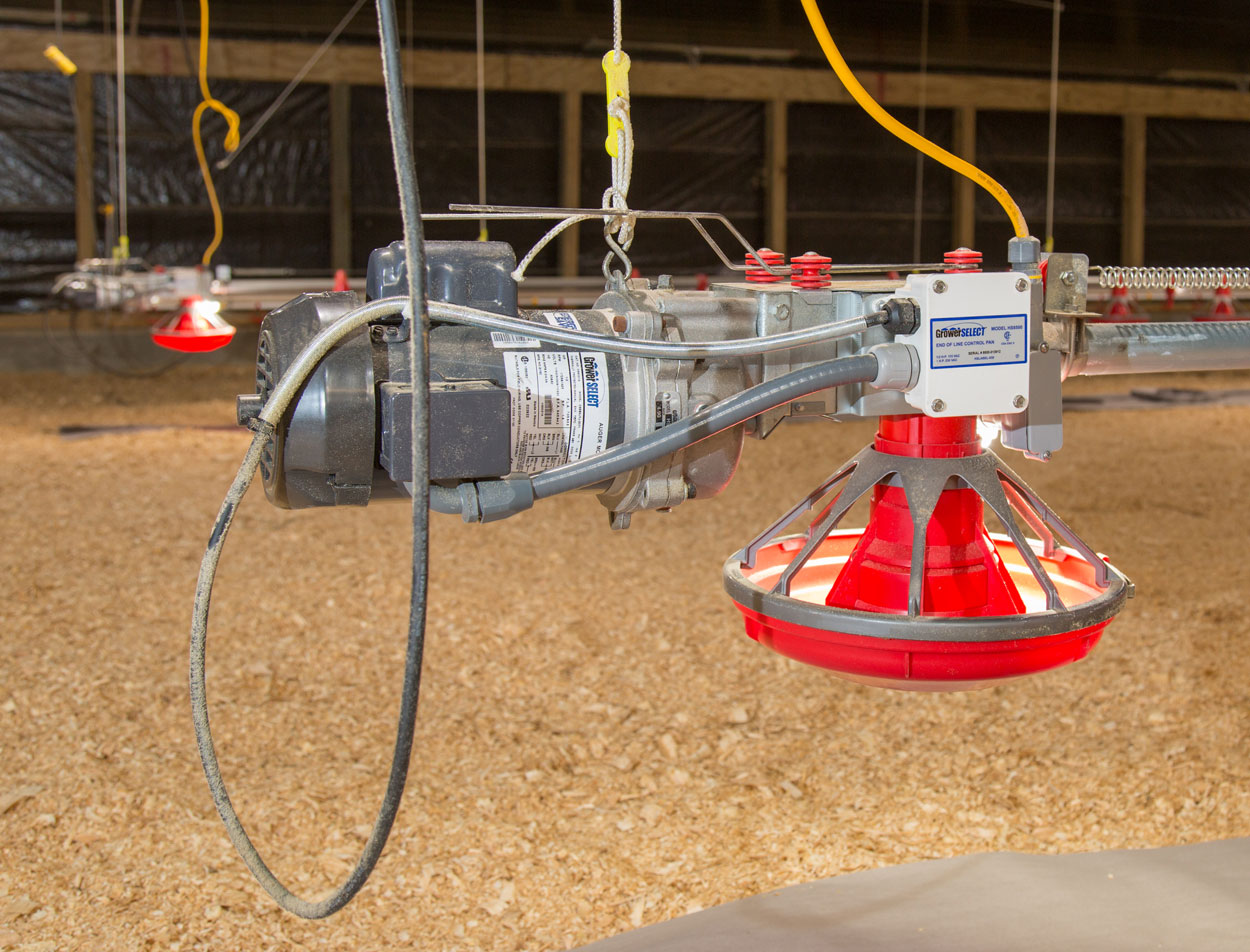

GrowerSELECT® Drive Units for poultry feed lines are available in multiple motor sizes to handle various feed system lengths. 1/2 HP (HS9021D1-P) GrowerSELECT drive unit shown installed with HS8500 End Control Pan with optional control pan light kit.GrowerSELECT® Drive Units for poultry feed lines are available in multiple motor sizes to handle various feed system lengths. 1/2 HP (HS9021D1-P) GrowerSELECT drive unit shown installed with HS8500 End Control Pan with optional control pan light kit.
  • Available in 1/3 HP and 1/2 HP 115/230V motor options with 36” pigtail cord; complete with 352 RPM gear head, driver connection kit, gear oil and mounting hardware
  • 3/4 HP 115/208-230V power unit available with 693 RPM gear head for high-speed feeding applications
  • Built with a stress-proof 1144 steel shaft that provides excellent protection from shaft breakage and permanently lubricated ball bearings for maintenance-free operation and long life
  • Shielded centrifugal starting switch gives motors a greater ability to withstand over-spin conditions
  • All motors have manual reset overload protection to prevent damage or accidental starting

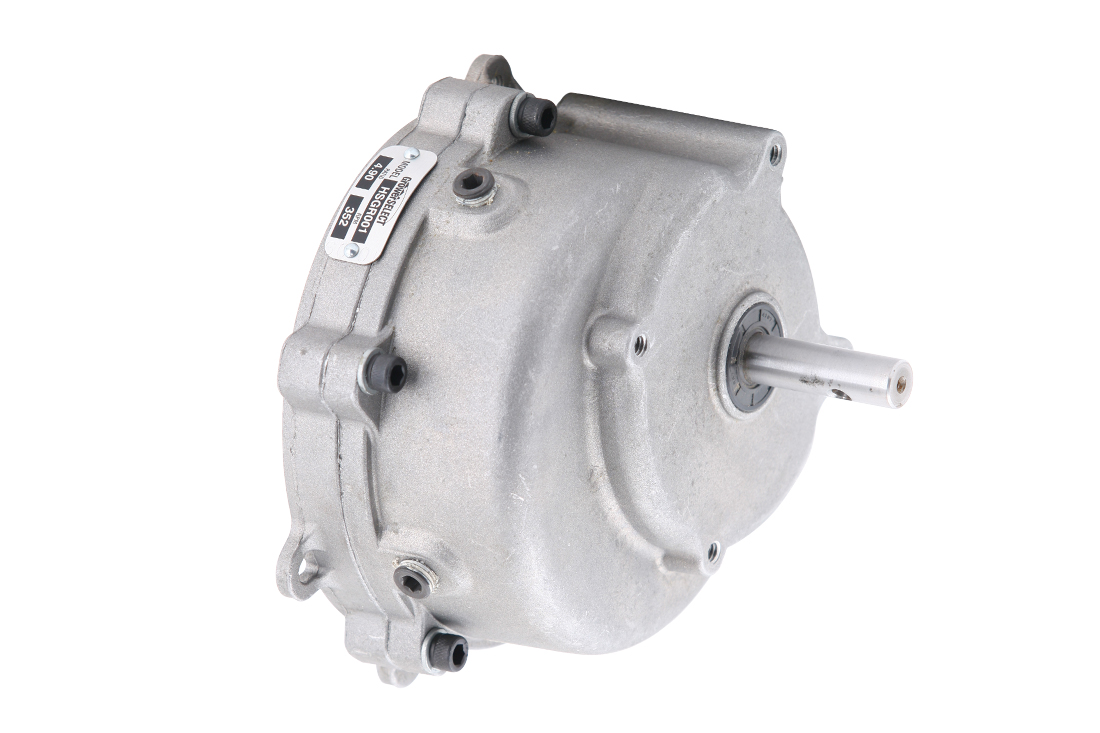

GrowerSELECT direct drive auger motors, pinions and gear heads are also available individually as high-quality, reliable replacement components to fit your existing poultry feed line components from other manufacturers.

Image Gallery -

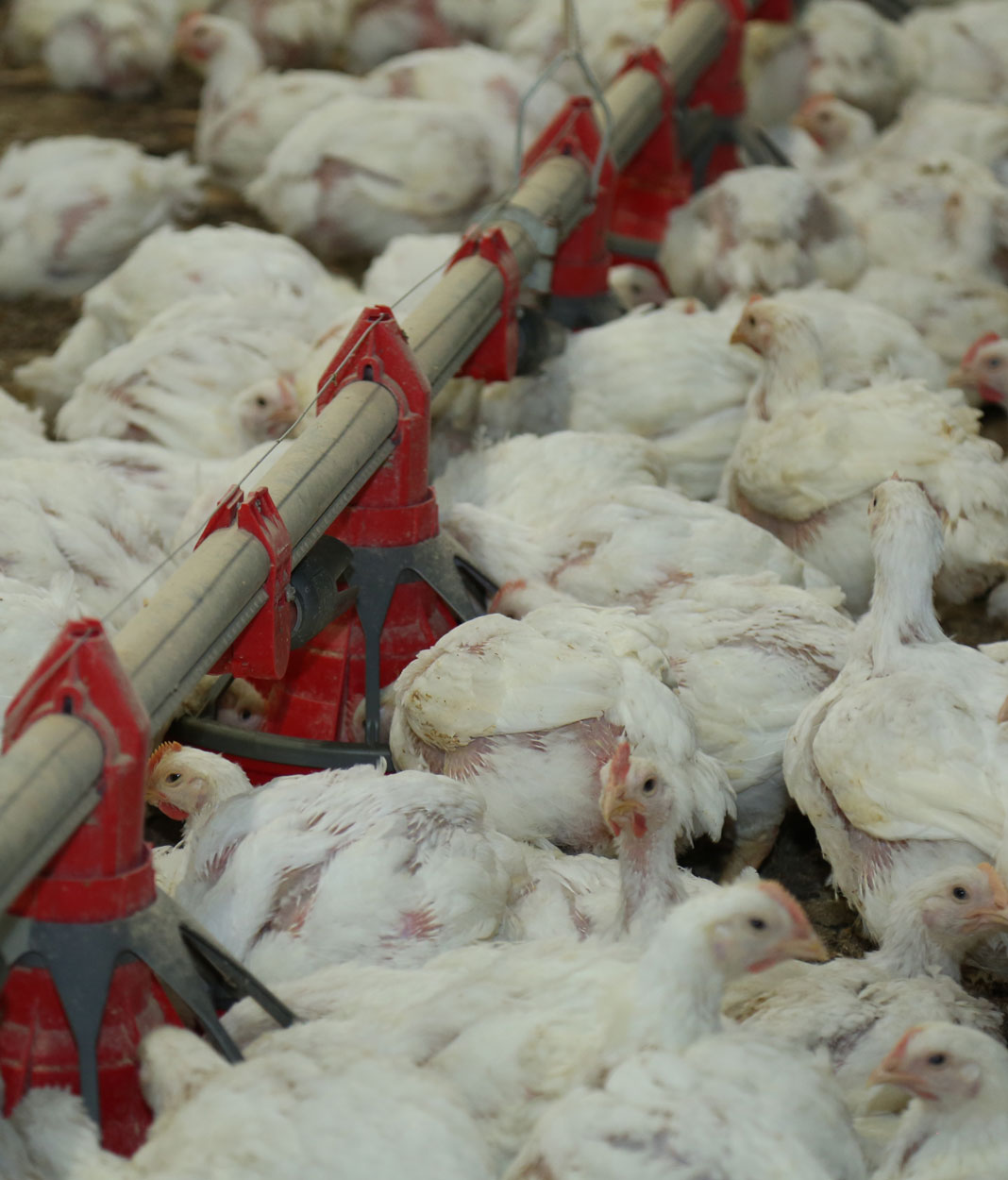

GrowerSELECT® poultry feed system components work together to keep your operation efficient and help maximize the conversion potential of every flock.

Click the above image for more pictures

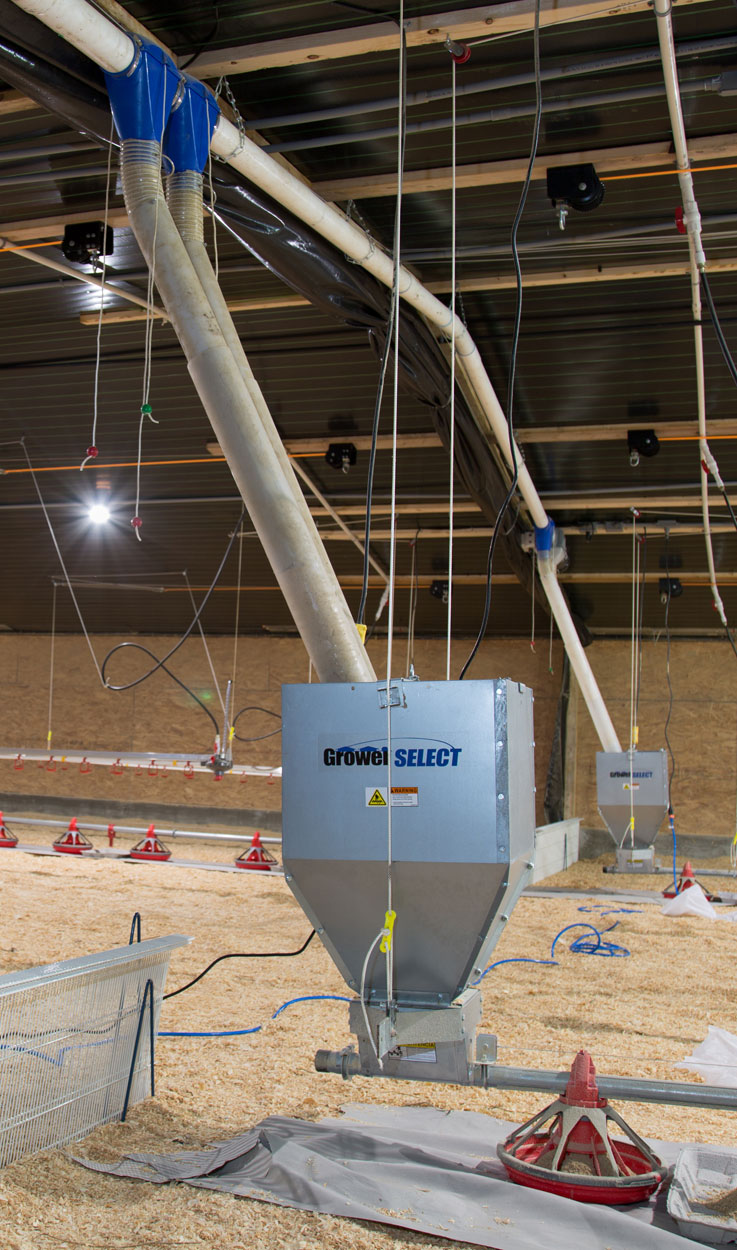

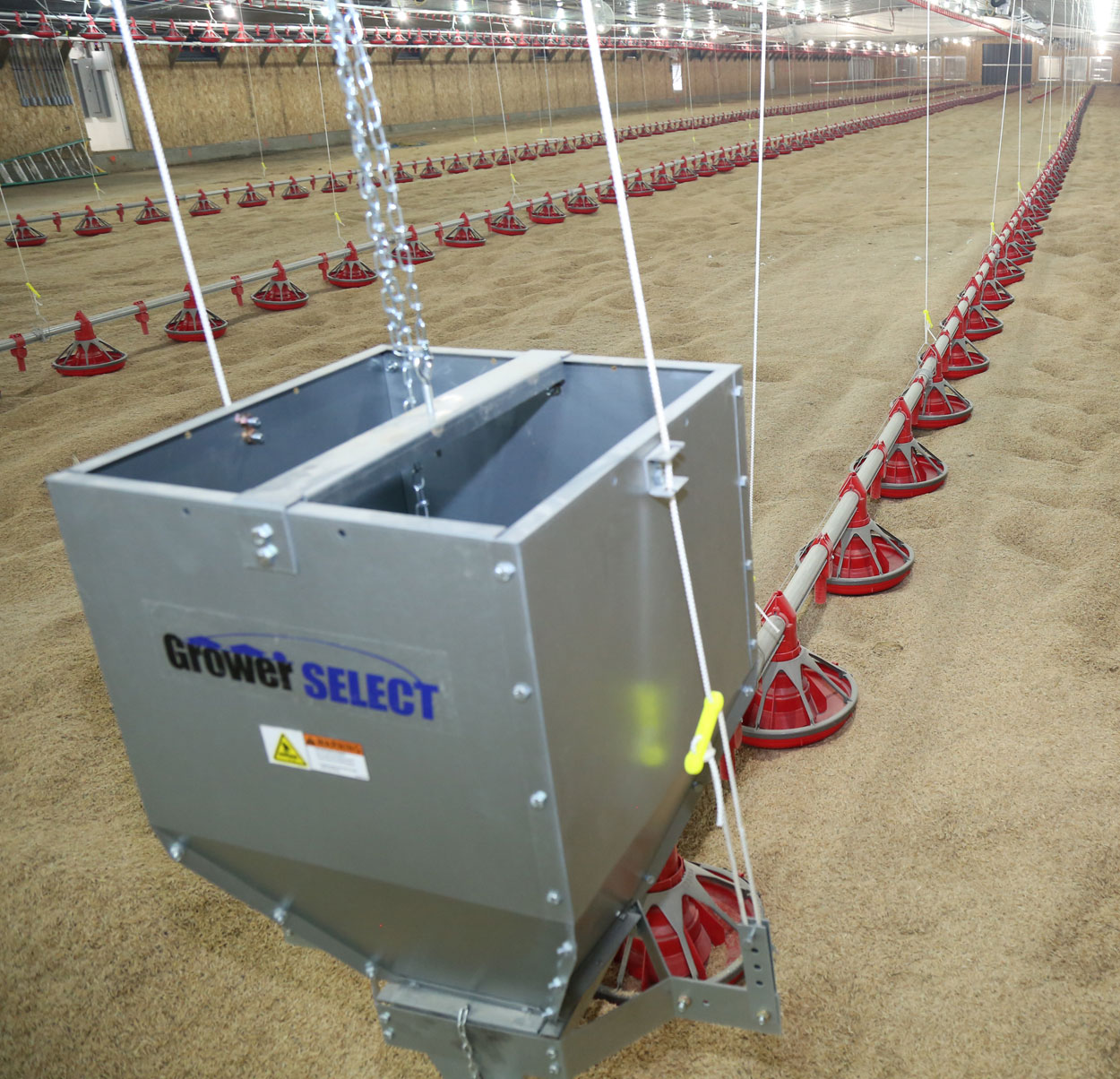

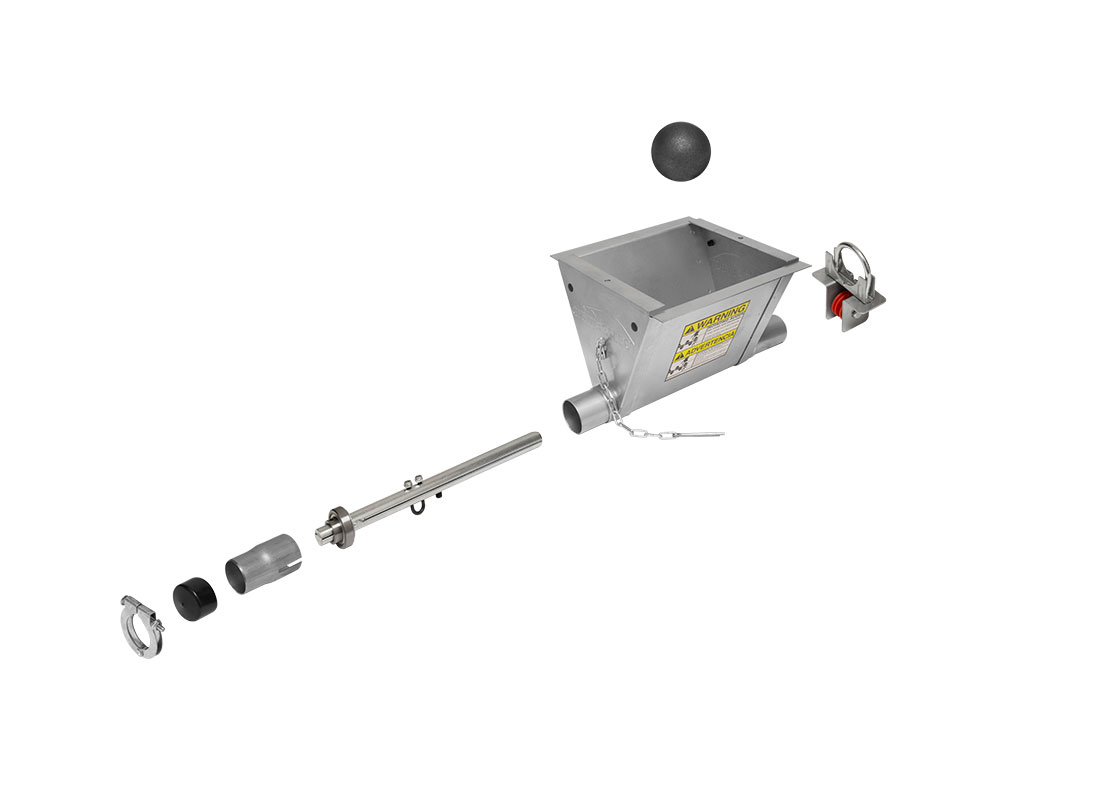

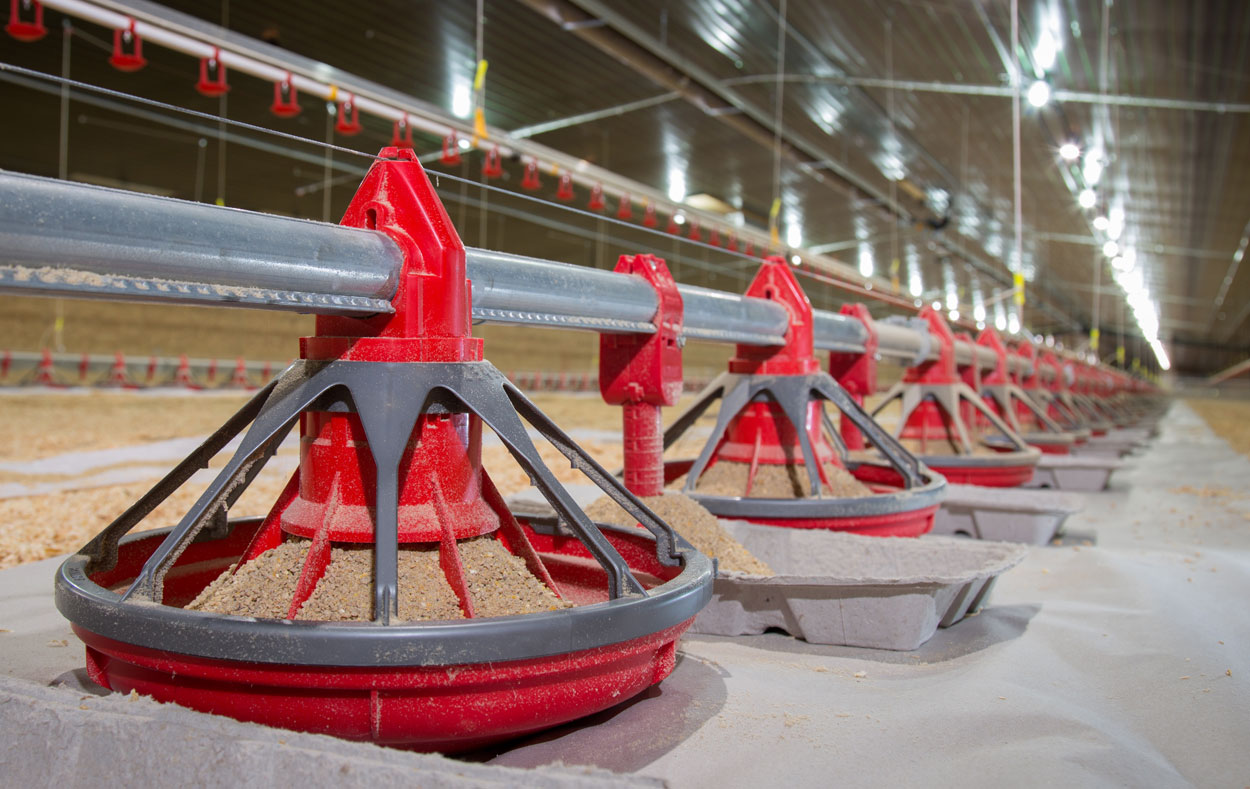

Hog Slat® Bulk Feed Tank Bins reliably store one of the most important inputs on your farm, feed. Built with heavier gauge metal, a thicker galvanized coating and an industry leading warranty.GrowerSELECT® Grow-Flex™ fill systems convey feed from the bulk feed bins outside into the barn, supplying each feed line hopper with continuously available feed. The automated system is triggered by hopper level switches installed in each poultry feed line hopper. GrowerSELECT® HS597 Hopper Level Control can be installed in feed line hoppers without tools and is easily adjusted to maintain optimal feed availability. The GrowerSELECT® poultry feed delivery system supplies Classic Flood™ feed pans and Kwik-Start chick drop feeders in this broiler grow-out barn. Choose from a complete selection of Classic Flood pan configurations and feed line drop spacing options to design a feed system for your poultry production needs. GrowerSELECT® Poultry Hopper Chicken Unloader Kits include all the components needed to connect the hopper to the feed line. HS532KIT, single feed line unloader kit (shown).GrowerSELECT® Poultry Hopper Chicken Unloader Kits include all the components needed to connect the hopper to the feed line. HS533KIT, double feed line unloader kit (shown). The GrowerSELECT® Universal Chicken Feed Line Anchor Bearing is supplied in the GrowerSELECT poultry hopper unloader kits, and is also available for purchase individually to replace worn items on your existing feed lines. GrowerSELECT® 1.75” diameter feed line pipe for chickens is available with multiple drop openings options in 10’ tube sections to meet the needs of various chicken production feeding layout requirements.GrowerSELECT® Poultry Hopper Turkey Unloader Kits include all the components needed to connect the hopper to the turkey feed line tube. HST1600KIT, double feed line unloader kit (shown). GrowerSELECT® Poultry Hopper Turkey Unloader Kits include all the components needed to connect the hopper to the turkey feed line tube. HST1610KIT, single feed line unloader kit (shown). The GrowerSELECT® turkey feed line anchor is included with the HST1600KIT and HST1610KIT turkey hopper unloader kits. GrowerSELECT® Turkey Feed Line Tube is 2” in diameter and accepts Grow-Flex™ 44mm poultry feed line auger. Options are available for 1, 2 or 3 drops per 10’ section of pipe. GrowerSELECT® Grow-Flex™ poultry feed auger is manufactured using an innovative process that provides superior flexing and breakage strength to keep you system performing longer. Available for new installations and as a quality replacement auger for your existing feed lines from other manufacturers. GrowerSELECT® poultry feed system drive unit kits are sold with all required components for installation. GrowerSELECT® auger drive unit motors are also available individually to serve as high-quality, affordable replacement motor options for poultry feed systems from GrowerSELECT and other manufacturers. GrowerSELECT® drive unit gear heads are available individually to serve as high-quality, affordable replacements for worn units on GrowerSELECT and other brands of poultry feed line systems. GrowerSELECT® poultry feed systems are designed to provide superior reliability, performance and feed conversion potential. All GrowerSELECT poultry feed system components work together to help keep you competitive and your operation as profitable as possible.
