Classic Flood Pan Feeder

GrowerSELECT Classic Flood Pan Feeder

The GrowerSELECT® Classic Flood poultry feed pan is an improved version of an industry staple. Classic Flood feeders are constructed of UV stabilized polypropylene without the use of CADMIUM or LEAD. Flood windows increase available feed in the pans to attract chicks and high-wear areas have been reinforced to increase pan life. An extended, non-prorated 5 year warranty ensures our pan feeder is built to last!


GrowerSELECT® Classic Flood feed pans are constructed with quality materials and features to improve broiler feeding performance.GrowerSELECT® Classic Flood feed pans are constructed with quality materials and features to improve broiler feeding performance.

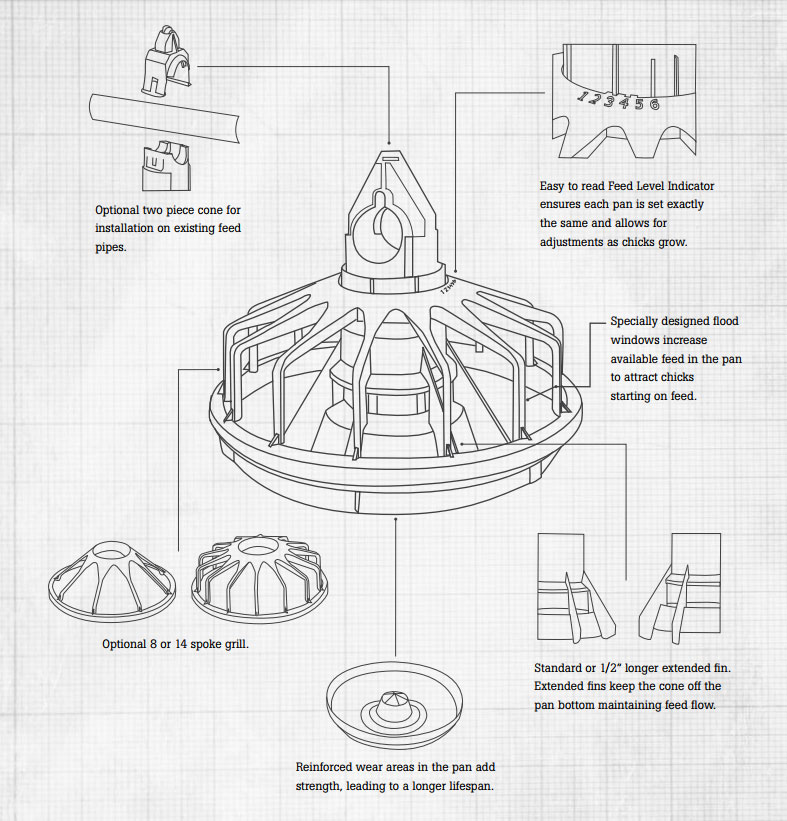

  • Easy to read feed level indicator ensures each pan is set exactly the same and allows for precise adjustment as chicks grow
  • Specially designed flood windows increase available feed in the pan and attract young chicks to begin eating feed
  • Standard or 1/2” longer extended adjustment fin options provide greater control over feed flow
  • Reinforced wear areas in the feed pan add strength, leading to a longer pan lifespan
  • 8-spoke and 14-spoke grille options
  • Optional two-piece cone provides easy installation on existing feed line pipes
  • Pan options available to fit standard 1.75” roll-formed seamed feed tube and 45mm smooth feed pipe

Pair Classic Flood feed pans with GrowerSELECT poultry feed line tube and our other quality feed delivery system components to complete your poultry feeding system.

Control Pans

GrowerSELECT poultry feed line control pans reliably operate individual feed lines to keep pans filled and feed present for your birds during the entire grow out.

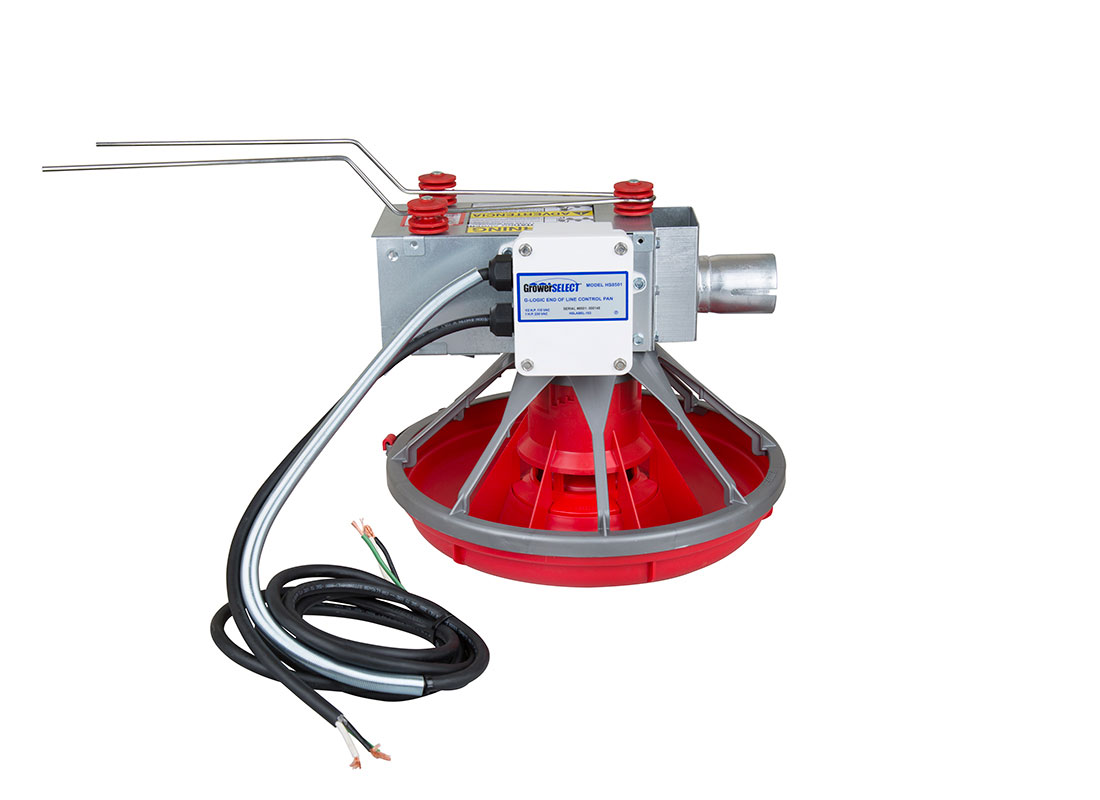

HS8501 G-Logic Control Pan

The GrowerSELECT G-Logic control pan is an end control pan that features a non-mechanical capacitive sensor to detect feed levels, increasing reliability and eliminating the possibility of a mechanical switch that can wear out and stop working. The G-Logic sensor also eliminates the need for a fabric diaphragm.

The GrowerSELECT® HS8501 G-Logic end control pan uses a non-mechanical capacitive sensor to detect feed levels. This sensor is designed to eliminate issues possible with mechanical switches and diaphragm replacements, providing improved lifespan.The GrowerSELECT® HS8501 G-Logic end control pan uses a non-mechanical capacitive sensor to detect feed levels. This sensor is designed to eliminate issues possible with mechanical switches and diaphragm replacements, providing improved lifespan.
  • Complete with 10’ pigtail cord, 18” cord protector, watertight connections and mounting hardware
  • Built-in circuit protection safeguards against voltage spikes
  • 60 second time delay reduces motor short cycling during periods of heavy feeding
  • Internal compensation to prevent fluctuating temperatures from influencing the unit’s sensitivity
  • Available in 8-spoke grille design only
  • 115/230 Volt power input
  • CSA Certified

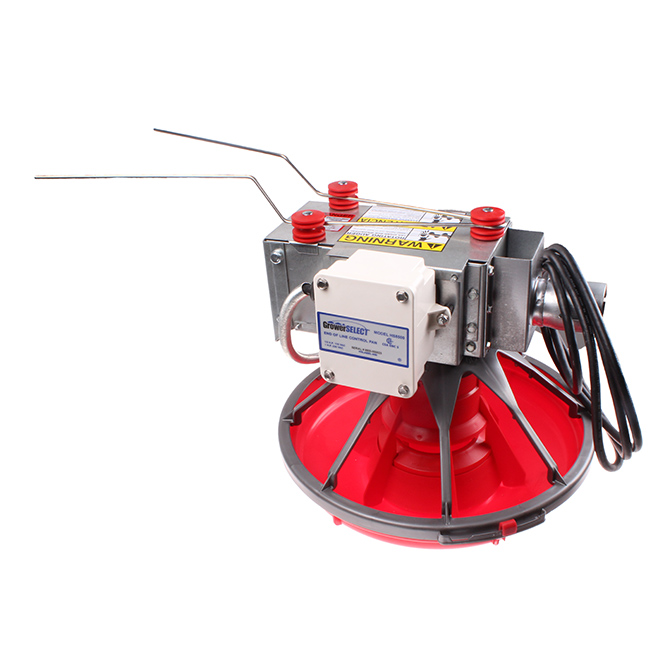

HS8500 End Control Pan

The GrowerSELECT end control pan is a rugged, trouble-free design that uses a simple paddle switch to control poultry feed line operation. Easily retrofits onto most existing feed line systems.

  • Complete with 10’ pigtail cord, 18” cord protector and watertight connections
  • Available in 8-spoke grille design only
  • 110/240 Volt power input
  • 20 amp micro switch
  • CSA Certified

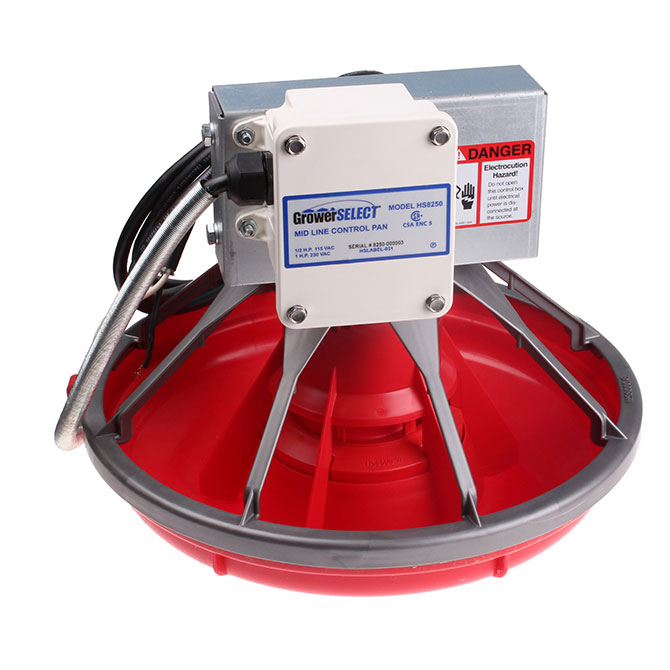

HS8250 Mid-Line Control Pan

The GrowerSELECT mid-line control pan is a rugged, trouble-free design that uses a simple paddle switch to control poultry feed line operation during the brooding phase of grow out. Easily retrofits onto most existing feed line systems.

  • Complete with 10’ pigtail cord, 18” cord protector and watertight connections
  • Available in 8-spoke grille design only
  • 110/240 Volt power input
  • 20 amp micro switch
  • CSA Certified

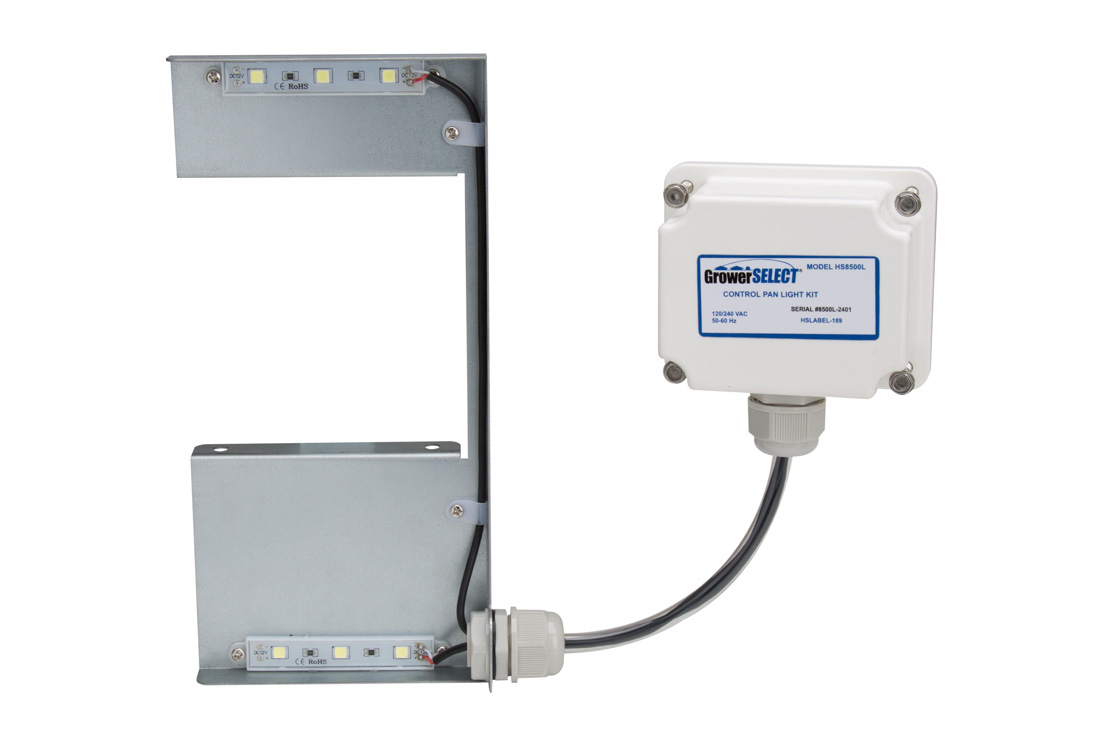

HS8500L Control Pan Light Kit

The GrowerSELECT control pan light kit is designed to fit GrowerSELECT and Chore-Time® end control pans. The light kit features two banks of LED lights that offer better light distribution in the pan to encourage increased feeding in the control pan. Increased feeding at the control pan helps ensure frequent feed line activation to maintain feed access for birds at all times.

  • Can be easily added to existing control pans
  • Designed to resist damage from power surges
  • Fits HS8500, HS8501 and Chore-Time end of line control pans
  • 120/240V 50/60 Hz

Image Gallery -

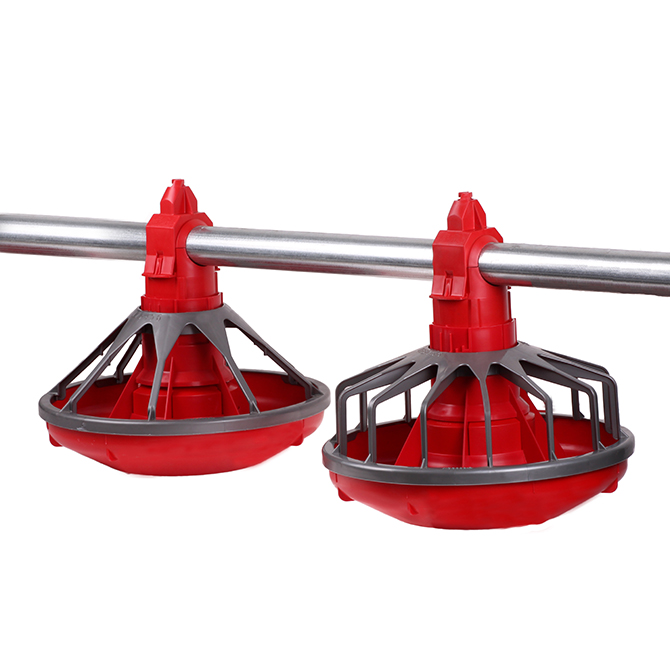

GrowerSELECT® Classic Flood Poultry feed pans are available with optional 8-spoke or 14-spoke grille models and single or two-piece support cones. Pan options available to fit standard 1.75” roll-formed seamed feed tube and 45mm smooth feed pipe

Click the above image for more pictures

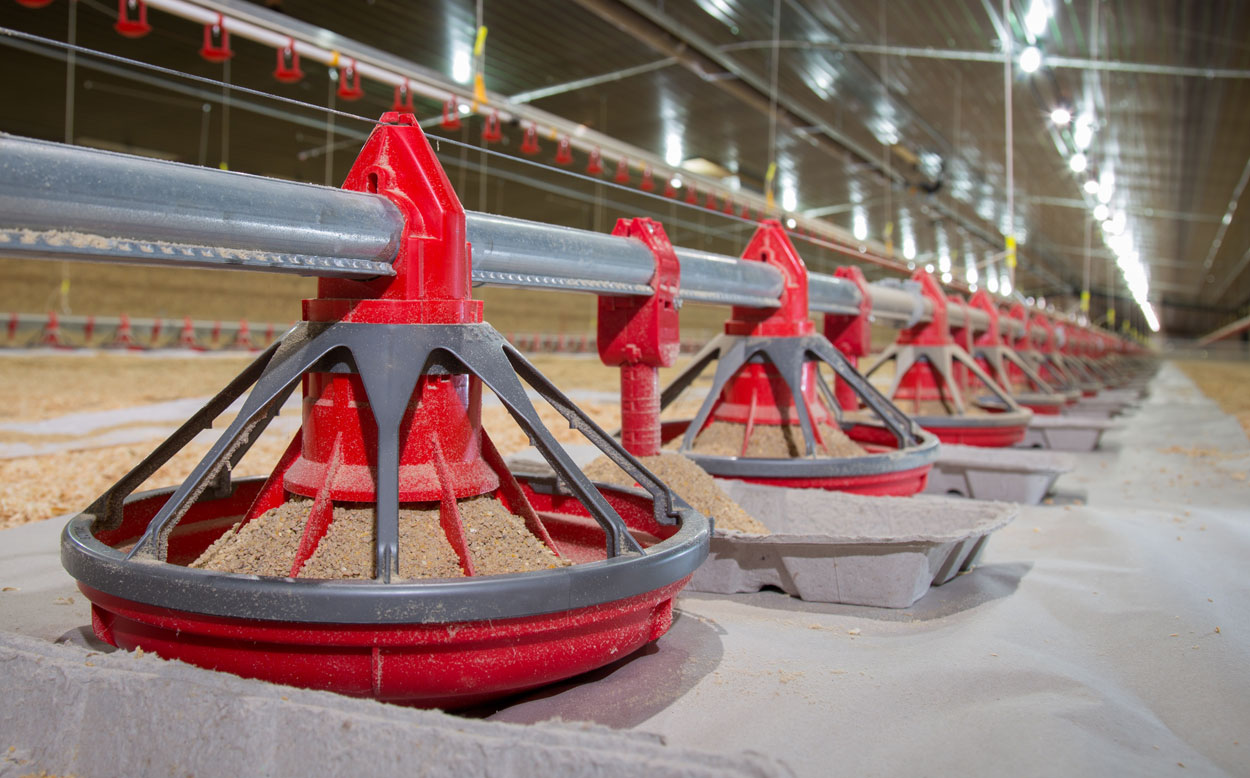

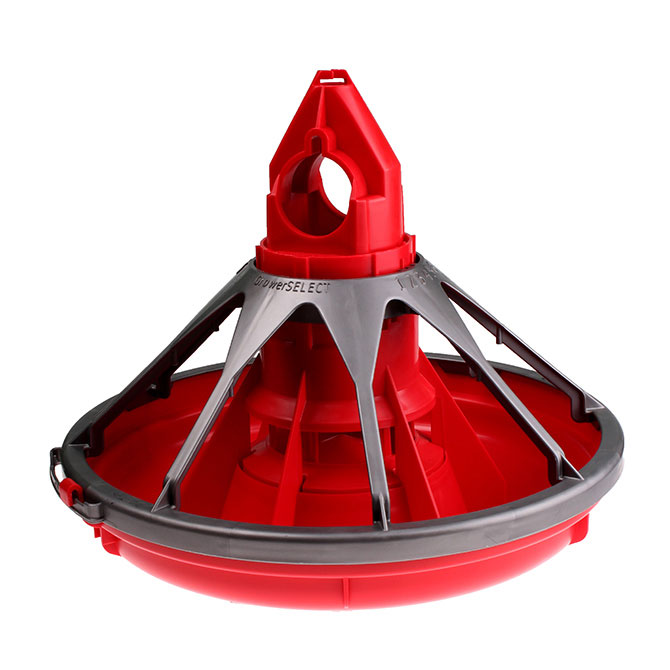

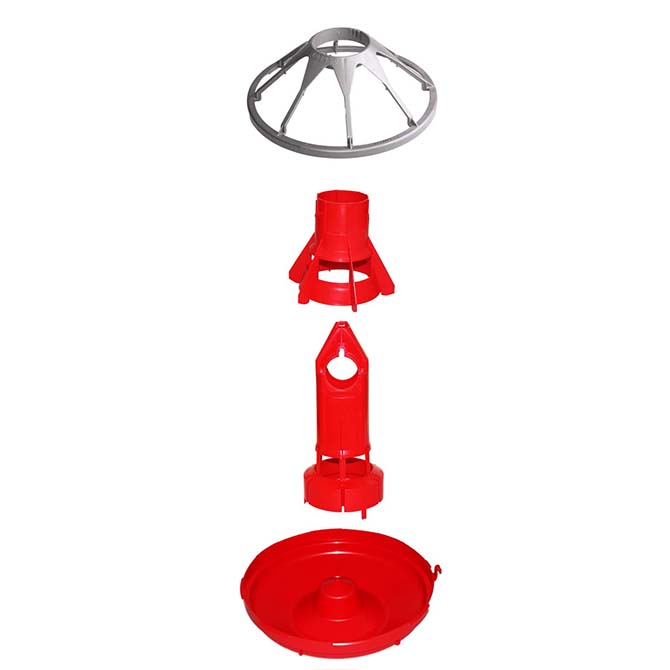

GrowerSELECT® Classic Flood Poultry feed pans are available in many different configurations. HS8000C (shown) includes a single piece support cone, 8-spoke grille, extended fin feed level adjuster and shallow cone feed pan. GrowerSELECT® Classic Flood poultry feed pans are available with a single piece support cone for new feed line installations. (HS8000B shown).Two piece support cone models are perfect for installations on existing feed lines.  (HS8000F shown)The GrowerSELECT® HS8500 End of Line Control Pan reliably activates poultry feed line systems to keep pans full and maximize conversion potential.The GrowerSELECT® HS8250 Mid-Line Control Pan is used to activate and keep feed lines full during the brooding phase of broiler production. The GrowerSELECT® HS8500L Control Pan Light kit features two banks of bright LED lights to evenly illuminate the end of line control pan. The lighted pan encourages increased feeding, ensuring regular activation of the feed line to keep all pans on the line full. The HS8500L kit fits all GrowerSELECT® and Chore-Time® end control pans. GrowerSELECT® Classic Flood poultry feed pans are available in multiple configurations to meet the feed system needs in a variety of production systems.GrowerSELECT® HS8500 End of Line Control Pan with Control Pan Light Kit installed on a broiler house feed line.

Videos -

GrowerSELECT® Classic Flood™ Pan Feeder for Poultry from Hog Slat.

GrowerSELECT® G-Logic End Control Pan for Poultry from Hog Slat.

Testimonials -

“Our old feeders just weren’t allowing us to compete with some of the newer barns around our area. Our very first flock with the new Classic Flood feeders settled at #1.”

C.L. England
Exeter, MO


“We installed the GrowerSELECT Classic Flood feeders in two buildings, and a leading competitive brand in the other two buildings. Over the next year, we trialed the two feeders side by side through five flocks. The Classic Flood feeders came out on top for feed conversion in four out of five flocks.”

Billy Dossett
Collins, MS


“Installing the new Classic Flood pans helped minimize wasted feed when the birds are young and they have improved my feed conversion during grow out.”

Rodney Bowden
Clinton, NC
