Pit Scraper System

Pit Scraper System

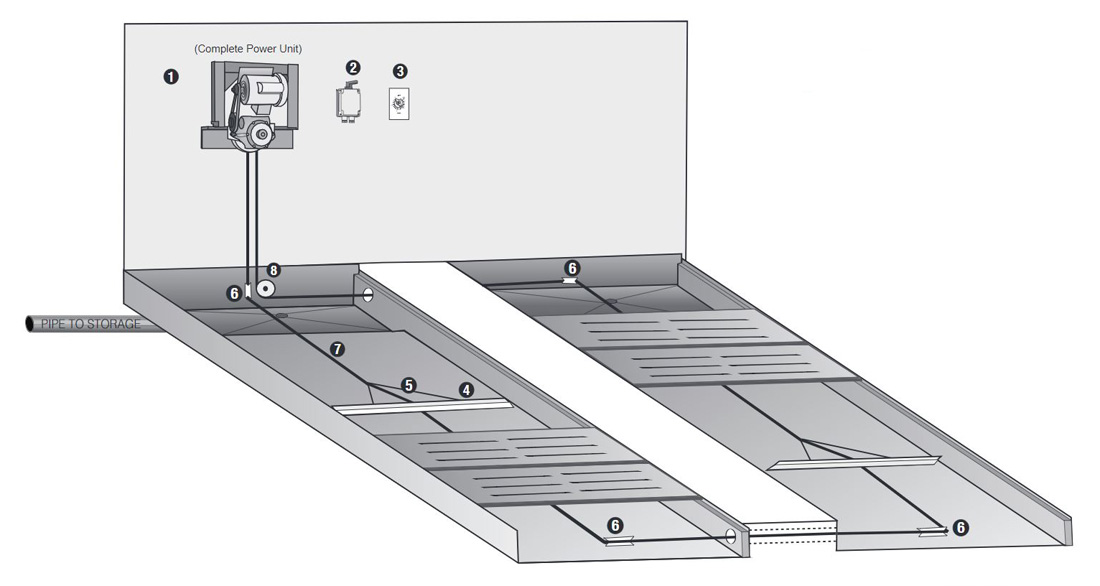

Manure scraper systems are an effective way to remove solids from underneath slats in shallow gutter pit systems without requiring extra water to be used. Hog Slat manure scraper systems feature stainless steel scraper blades, cable and pulley brackets; rugged cast iron gear reducers and a durable ¾ HP motor.

  • Manure scraper systems can be installed in shallow pit swine barns with at least 8” of clearance beneath the concrete slats or farrowing floors (12” clearance beneath floor recommended)

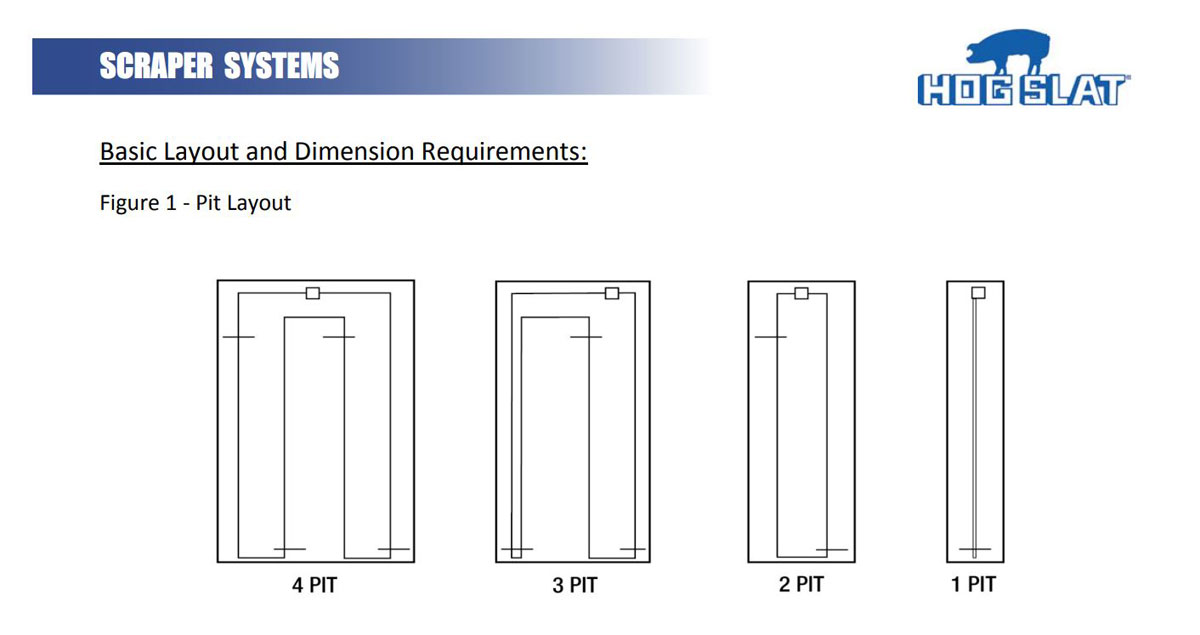

  • Hog Slat manure scraper systems can be installed in multiple configurations, allowing one system to operate and clean between 1 and 4 pits in the same barn

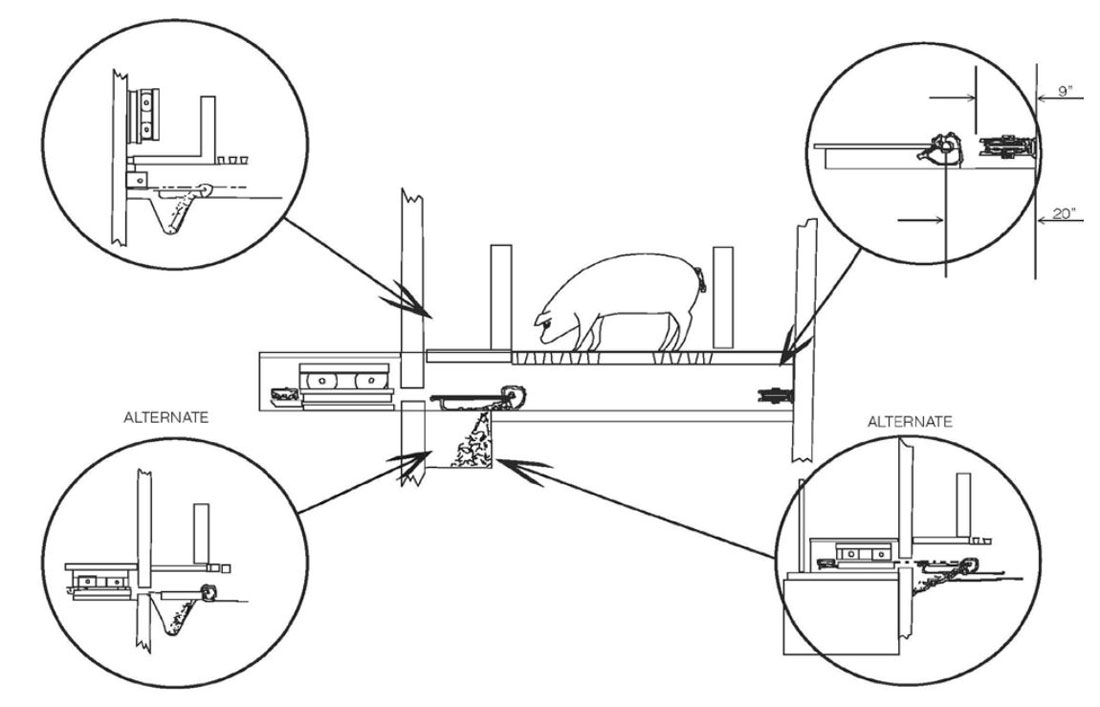

  • Manure scraper systems can be installed on new construction projects or retrofitted to existing pit configurations on barn remodel projects
  • Pit scraper systems can be operated manually by a switch and interval timer, or automatically with the Hog Slat Automatic Pit Scraper Controller

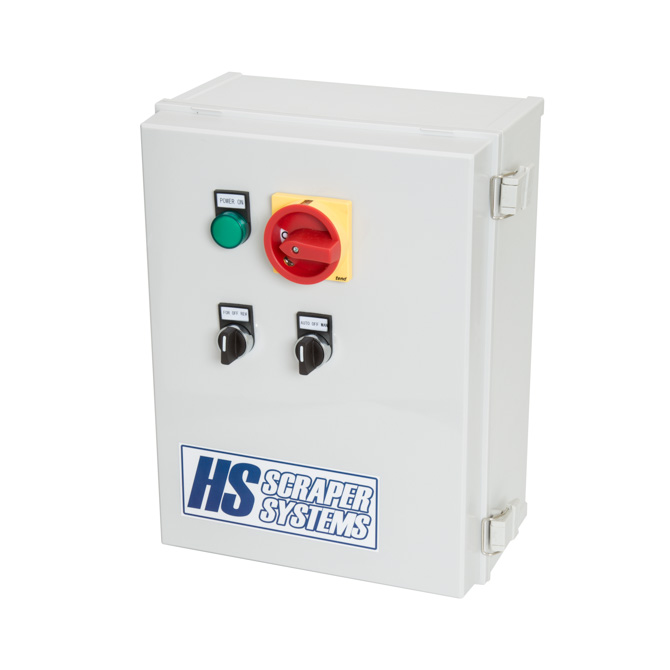

Hog Slat Automatic Pit Scraper Controller

The Hog Slat Automatic Pit Scraper Controller allows pit scraper systems to function automatically at adjustable intervals while also being activated manually as needed.

  • Hog Slat’s Automatic Pit Scraper Controller allows users to automatically operate pit scraper systems, while also maintaining the ability to manually control the system as needed.Hog Slat’s Automatic Pit Scraper Controller allows users to automatically operate pit scraper systems, while also maintaining the ability to manually control the system as needed.Controller available as a stand-alone unit, or complete installation kit
  • One controller required per scraper system installation
  • Automatic model operates scraper system at your choice of intervals based on a 24 hour timer
  • Manual mode allows users to control which direction the system travels and is useful during maintenance or periods of increased activity
  • 220-240VAC, Single Phase, 50/60 Hz

Item # HS588-24VDC (Automatic Pit Scraper Control Only)
Item # HS588-24VDC-KIT (Automatic Pit Scraper Control Kit: Includes limit switches, switch mounting brackets and stainless steel anchor bolts)

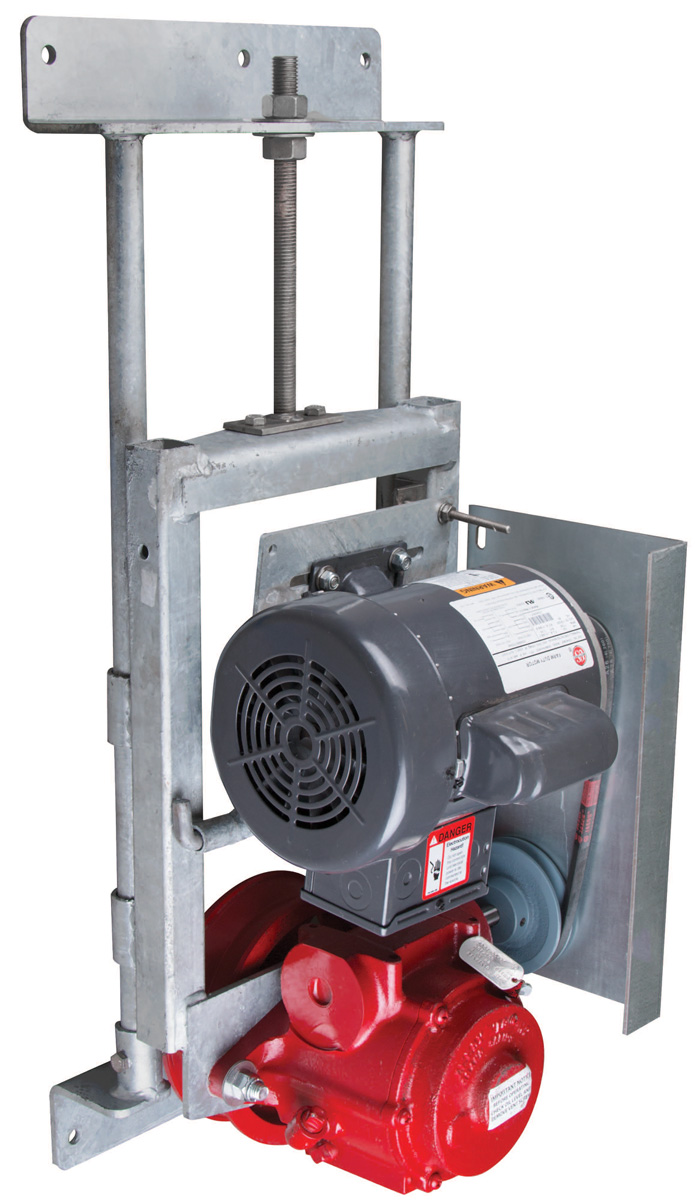

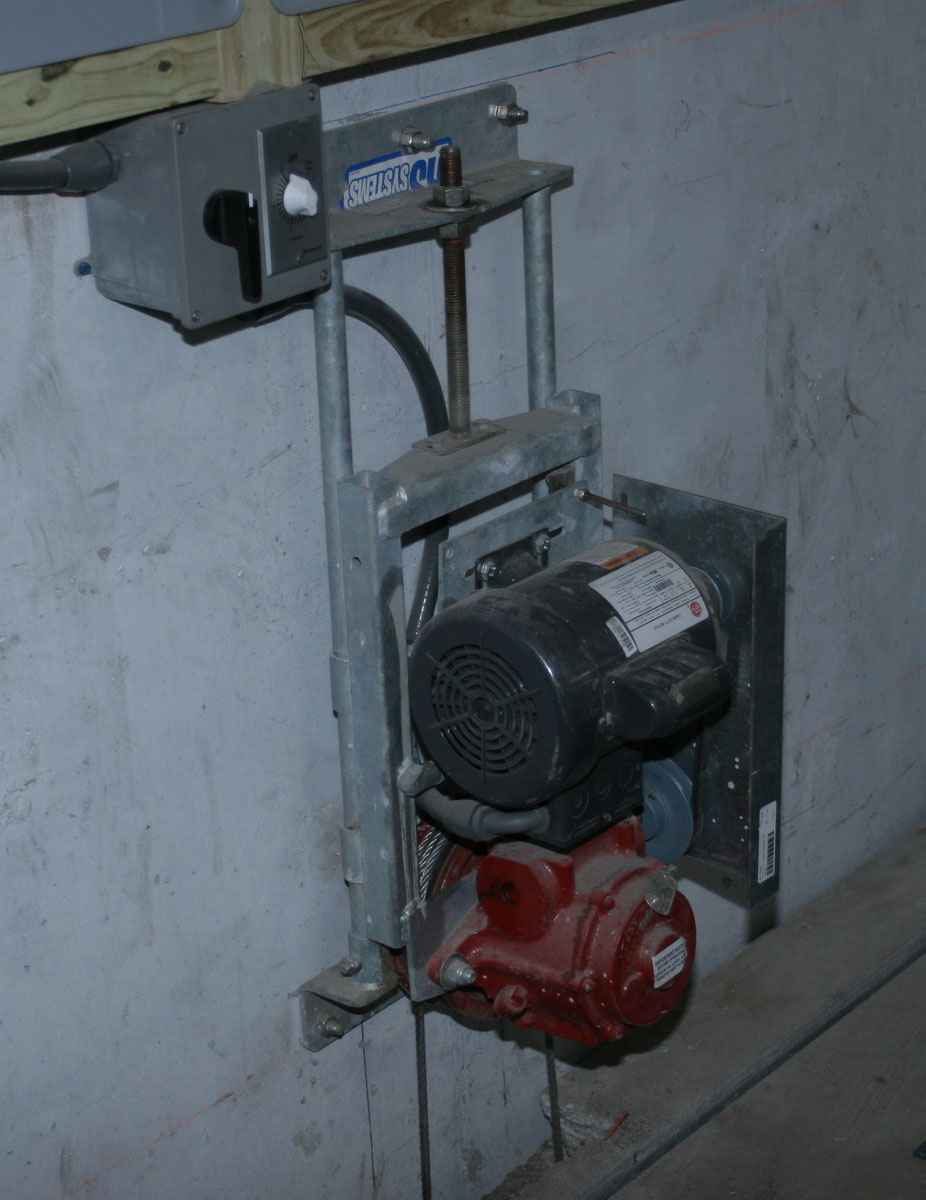

Scraper System Power Unit

  • The scraper system power unit features a powerful ¾ HP high service factor motor, cast iron reduction gear and heavy-duty galvanized steel chassis.The scraper system power unit features a powerful ¾ HP high service factor motor, cast iron reduction gear and heavy-duty galvanized steel chassis.¾ HP, 115/230VAC, 50/60 Hz single speed electric motor with 5/8” shaft and 1.15 Service Factor
  • Right-angle gear reducer with 55:1 ratio mounted inside a cast iron housing
  • Heavy-duty welded frame with hot-dipped galvanized finish and built-in tensioner bolt
  • Belt-drive system provides extra safety factor by slipping if an undetected obstruction occurs
  • Ships fully assembled
  • Item # 452-709M

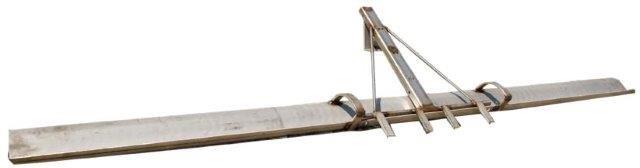

Stainless Steel Scraper Blades

  • Heavy-weight scraper blades rotate down to move manure toward a collection gutter on the forward stroke and rotate upward on skid plates to ride over manure on the reverse stroke
  • Manufactured with durable, high-quality 304 stainless steel in the USA
  • Available in sizes to fit all common shallow pit barn configurations
  • Custom sizes also available

Pit Scraper Installation Accessories

Hog Slat stocks a complete line of manure pit scraper system installation accessories and replacement parts.

  • Gear reducers, power units, drive pulleys and v-belts
  • Stainless steel mounting brackets, corner wheels, stop rods and stainless steel cable
  • Manual activation switches, operation interval timers and limit switches
