Dosatron® DM11F parts

Dosatron DM11F Parts Diagram

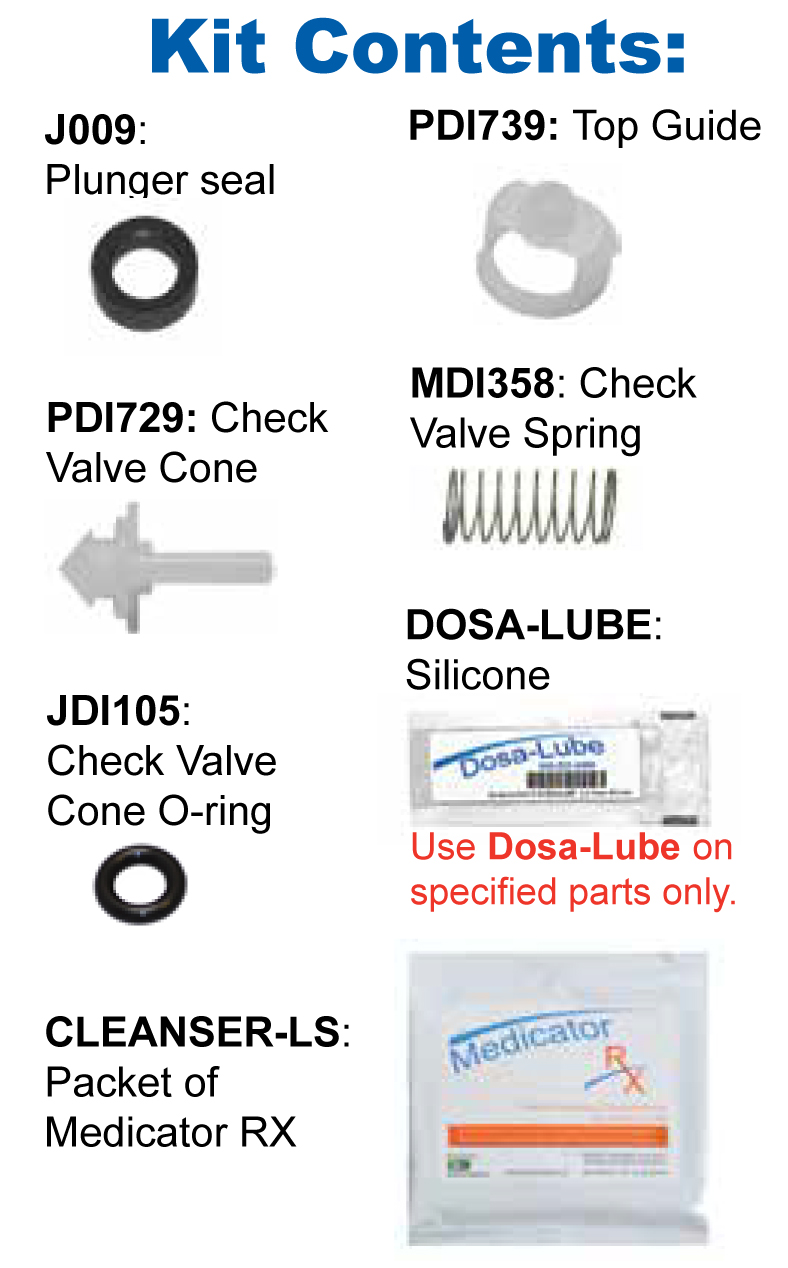

Dm11 lower end kit

PJDI900LS
Lower end Repair Kit for the most common
wear parts.

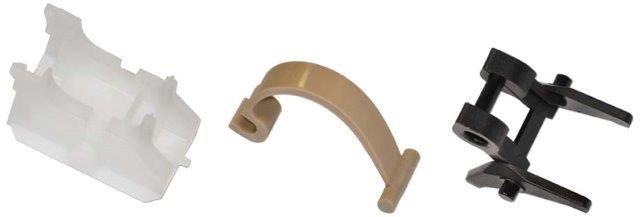

PPDI048
Slider Repair Kit

Click on Item# to go to the product page DM11F Replacement Parts
Key	Item#	Description	Key	Item#	Description
1	MPDI199	Cap assembly	19	PDI846	Isolation body
2	MDI367	Screw	20	PDI848	Plunger
3	MDI354	Nut	21	JDI105	Plunger o-ring top
4	PJDI127HT	Diaphragm	22	J009VF	Plunger seal bottom
5	PDI781	Plastic seal for diaphragm	23	JDI100HT	O-ring for stem body
6	PDI771	Body	24	PDI702	Top stem nut
7	PPDI048	Slide repair kit	25	PDI784U	Stem body
8	MDI357	Actuator plate	26	PJDI115	Check valve assembly
9	JDI128HT	Actuator gasket	27	PDI739	Check valve cap
10	PDI775	Actuator base	28	MDI358	Check valve spring
11	JDI129HT	Actuator gasket	29	PDI729	Check valve cone
12	JDI133HT	O-ring seal for actuator (2 req)	30	JDI105	O-ring for check valve cone
13	PDI777	Upper transfer body	31	JDI130HT	O-ring for hose barb
14	PDI776	Transfer body	32	PDI740	Hose barb
15	MDI355	Screw	33	PDI734	Nut for check valve
16	JDI127HT	Transfer body gasket	34	PDI735	Lower stem nut
17	MDI356	Nut	35	MPDI185	Hose assembly 5/16"
18	8J040	O-ring for isolation body	36	52908	Strainer for 5/16" hose
			37	PDI773	Upper Plunger Assembly
